Raymarine ST40 Compass System w/ Fluxgate transducer E22048

  • Image 1
  • Image 2
RRP:
$328.00
Your Price:
$289.00 (You save $39.00)
SKU:
E22048
Brand:
Condition:
New
Weight:
1.50 KGS
Shipping:
Free Shipping
Quantity:


Product Description

Brand New

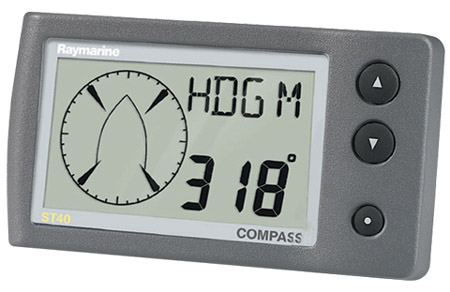

Raymarine ST40 Compass System

ST40 Display with Fluxgate Transducer Included



Raymarine ST40 Compass system  offers all essential heading information, big and clear display with sharp digits with a fluxgate sensor included.

ST40 Compass could be installed as a master display connected to the included fluxgate transducer or as a repeater for displaying heading data at multiple locations. The ST40 Compass System is SeaTalk compatible and integrates with Raymarine autopilots, Raymarine Chartplotters (multifunction displays) and other navigation equipment.

The ST40 Compass System has big high contrast LCD display with extra-large 7 segment 28mm sized digits and a 36 segment analogue dial display for excellent visibilityin all lighting conditions and 3 levels of display-backlighting for night use.

ST40 Compass displays heading data in true and magnetic bearing mode and allows the user to lock a bearing manually or automatically via a Raymarine autopilot course computer. In this mode ST40 Compass shows deviations from locked bearing and the direction to steer to achieve the locked bearing heading. ST40 Compass displays current compass heading plus locked heading, has ‘off course’ alarms and can be used as a ‘Man Over Board’ repeater.

Mounting hardware's (bezels for surface and bracket) color of ST40 Compass could be chosenbetween 3 finishes (Carbon fiber, Silver, Grey).

The Raymarine ST40 Compass System includes display, fluxgate compass transducer, sun cover, SeaTalk cable, mounting hardware and instructions.


ST40 Fluxgate Transducer




Raymarine ST40 Compass System Features:

  • SeaTalk compatible for networking to other instruments, multifunction displays and autopilots
  • High contrast LCD display for excellent visibility
  • 3 levels of display backlighting for night use
  • Large digits and analog readout for visibility across the cockpit
  • True or magnetic bearing information
  • User or autopilot initiated locked bearing mode
  • Integrated direction to steer and course deviation indicators
  • User adjustable off course alarm
  • Master or repeater operation for repeating compass data at another location


Raymarine ST40 Compass System Specifications:

General
  Supply voltage: 10 V to 16 V dc.
  Current consumption (12 V supply): 20 mA typical. 60 mA with maximum backlighting.
  Operating temperature: 0°C to +70°C.
  Interfaces: SeaTalk.
  Overall dimensions: 126 mm x 70 mm x 38 mm (5.00 inches x 2.80 inches x 1.55 inches).
  Boss diameter: 55 mm (2.20 inches).
  Heading range: 0 to 359°.
  Off course alarm: 2° to 30° (port or starboard).
  CE - conforms to 89/336/EC(EMC), EN60945. 94/25/EC(RCD), EN28846 (applies to transducer only).
