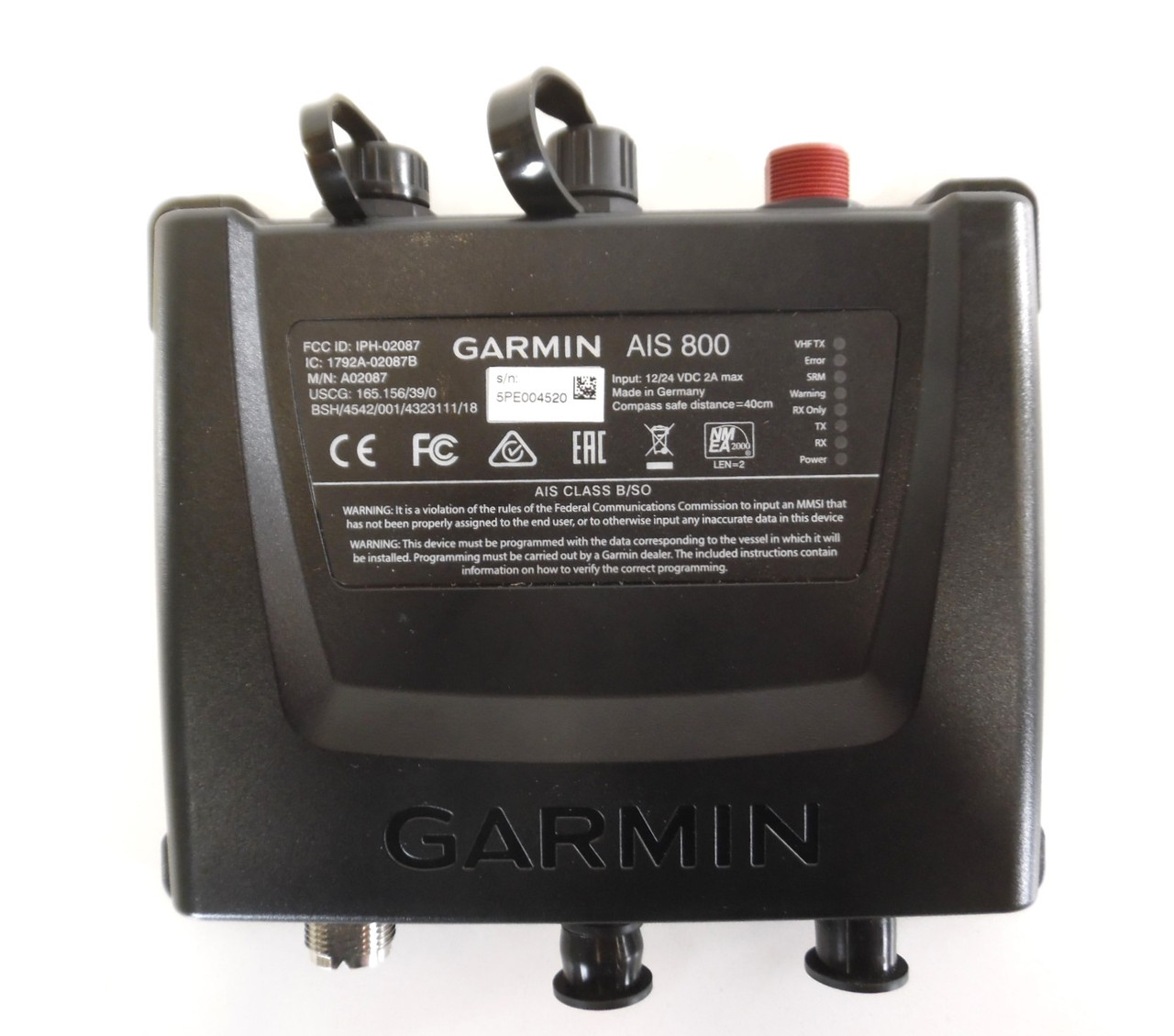

Garmin AIS 800 Class B Black Box Transceiver (010-02087-00)

The Garmin AIS 800 is a powerful Class B/SO AIS transceiver delivering superior target tracking, faster data exchange, and enhanced maritime safety. Designed for seamless integration with Garmin systems, Even in the extreme weather conditions it ensures secure, high-speed communication at sea

AIS 800 Class B Transceiver- Description

The Garmin AIS 800 is the Next-Level Maritime Awareness system.

The Garmin AIS 800 Class B/SO transceiver provides advanced vessel tracking and faster communication between AIS-equipped vessels. With 5-watt transmission power, high-speed SOTDMA technology, and NMEA 2000 connectivity, it's the perfect upgrade for improved awareness and navigational safety in busy waters.

Faster and Smarter AIS Data Exchange

Unlike standard Class B units, the AIS 800 uses Self-Organizing Time Division Multiple Access (SOTDMA) technology, enabling it to transmit data at faster intervals, improving your vessel’s visibility and ensuring you receive more frequent position updates from nearby boats.

Fully Integrated for Garmin Systems

With plug-and-play NMEA 2000® and USB connectivity, integration with your Garmin chartplotters, MFDs, and onboard systems is seamless. AIS targets appear clearly on compatible Garmin displays, allowing you to make better navigation decisions.

Compact and Waterproof Design

The rugged, IPX7-rated housing makes the AIS 800 ideal for harsh marine environments. Its compact size allows for flexible installation without compromising space or performance.

AIS 800 Class B Transceiver - Key Features

Class B/SO High-Speed Transceiver

• 5-watt Class B/SO transmitter using advanced SOTDMA technology
• Broadcasts vessel data at faster intervals than standard Class B AIS

Reliable Target Tracking

• Continuously receives position, heading, speed, and identity data from AIS-equipped vessels

• Increases visibility and situational awareness in high-traffic areas

NMEA and USB Connectivity

• Integrates seamlessly via NMEA 2000® and NMEA 0183

• USB port for PC-based AIS configuration or software updates

Rugged and Waterproof Design

• IPX7-rated waterproof housing

• Built for extended use in demanding marine conditions

Easy Setup and Operation

• Internal VHF antenna splitter simplifies installation
• User-friendly interface via connected Garmin displays or configuration tools

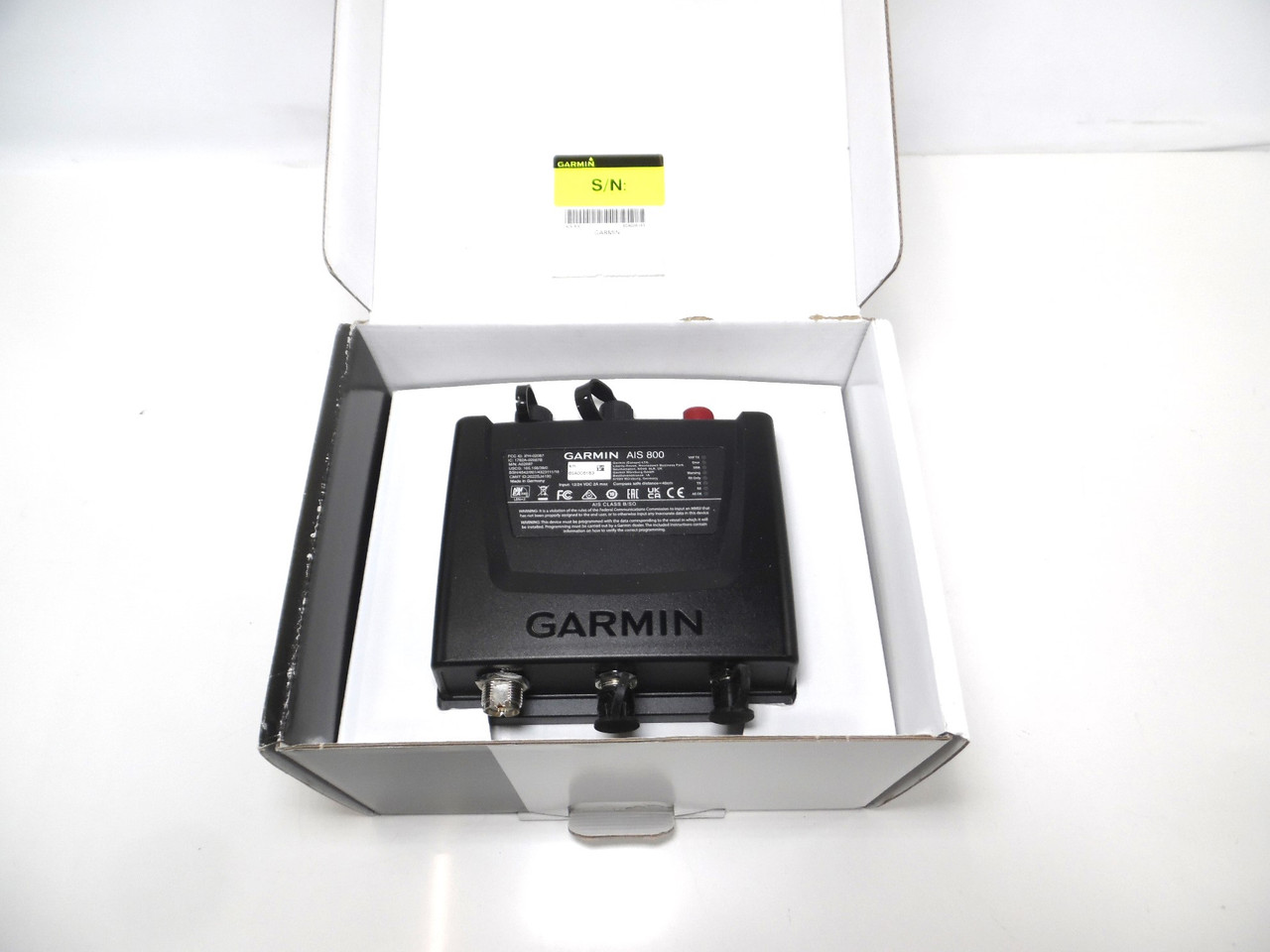

AIS 800 Class B Transceiver - What's in the Box

• AIS 800
• NMEA 2000 T-connector
• NMEA 2000 drop cable (2 metres)
• VHF antenna extension (1.2 metres)
• USB adapter cable
• Power cable
• Mounting hardware
• Documentation

AIS 800 Class B Transceiver - Specifications
