Raymarine C-Series Chartplotter WideScreen


Raymarine C-Series Chartplotter

Multifunction Displays Widescreen

C90W, C120W, C140W

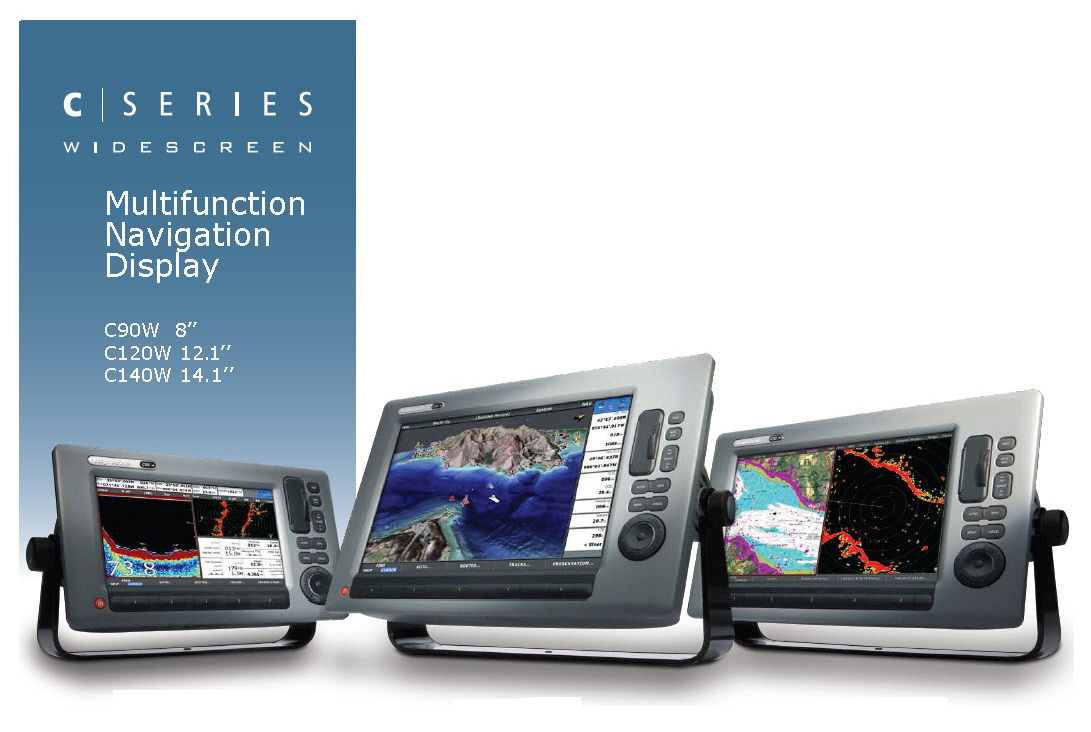

wide-head-pic44.jpgRaymarine C-Series Widescreen expands C-Series capabilities to better navigation with larger and wider displays, increased performances, expended networking and video integration.

Build Your system with a one widescreen display or dual C-Series Widescreens with full network.


With all C-Series Widscreen models you can easily expand your navigation multifanction display system with SeaTalkhs digital network bus and connect more devices like sensors for radar, fishfinder, satellite weather, autopilots, NMEA2000 compatible devices to display virtual instrument data of engine, NMEA0183 inputs and outputs for AIS and third party devices. Also every C-Series model have a first generation of SeaTalk port available for networking with an external GPS sensor, LifeTag (MOB) and more compatible instruments and autopilots.

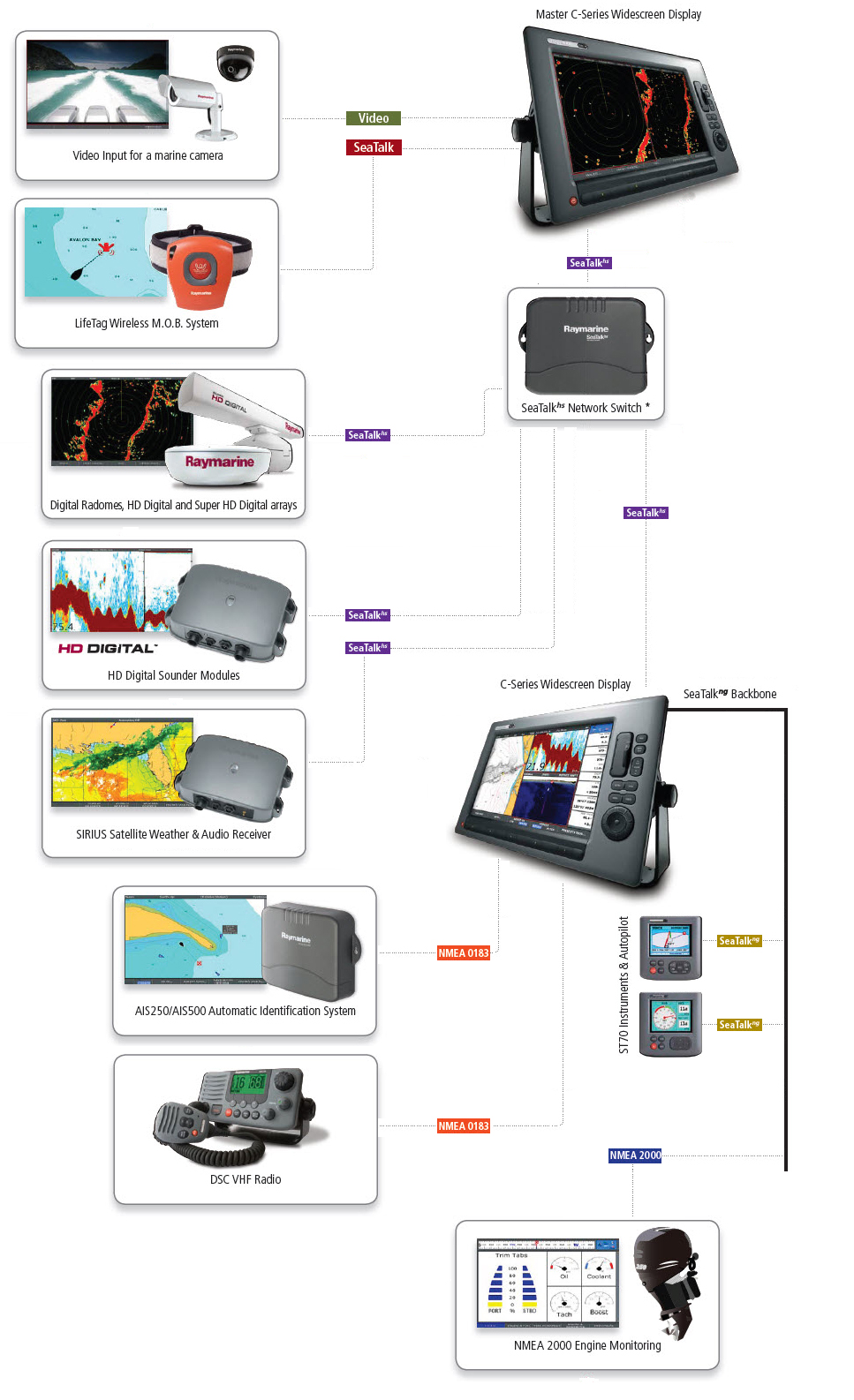

At the example below, two C-Series widescreen displays are connected together with Digital Radomes (Radar), HD Digital Sounder (for fishfinder) and SIRIUS Sattelite Weather and Radio by using SeaTalkhs network swich. One display is connected to video camera and with the first generation SeaTalk input to LifetTag MOB system. The other display is conneted to Automatic Identification System (AIS) device and to a DSC VHF Radio using the NMEA0183 connection and with the SeaTalkng backbone to ST70 Instruments & Auto pilot gauges and to Digital Engine Monitoring using NMEA2000. You can built your system in many more ways or combinations as it best fits your imagination.

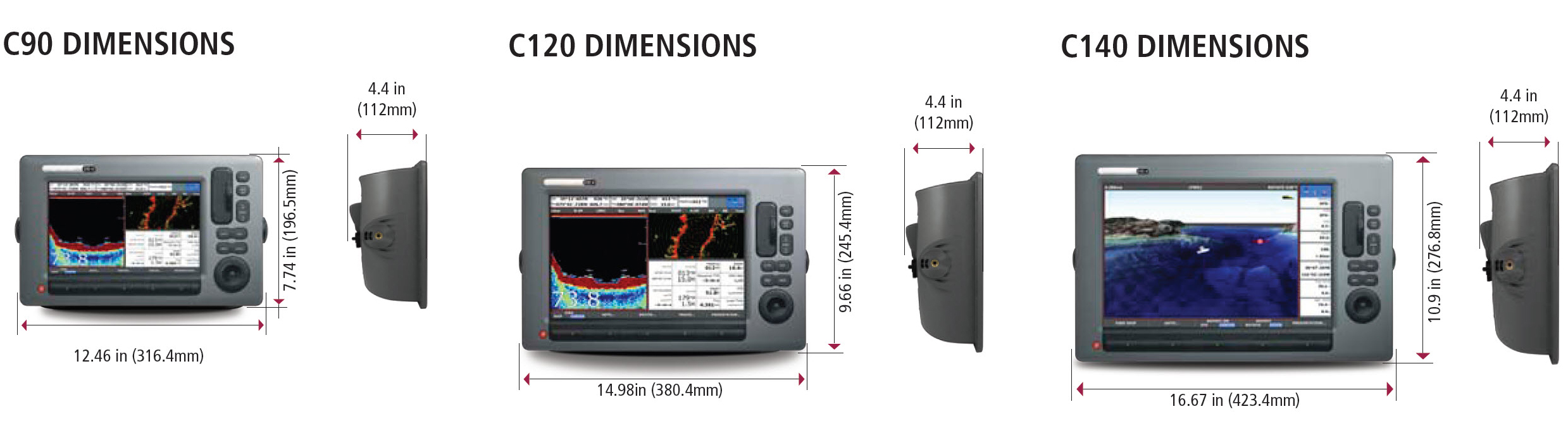

Raymarine C-Series Widescreen display are available in three sizes (9'', 12.1'', 14.1''). Each model is equiped with high resolution widescreen (WXGA) display that is viewable in direct sunlight and utilizes optical bonding technology for improved contrast, vibrant colors and wide viewing angle.

The C-Series Widescreen displays are ready to navigate with an internal high sensitivity GPS sensor.They are pre-loaded with NAVIONICS charts of U.S. or Europe and by using charts card of NAVIONICS PLATINUM with the built-in CompactFlash you could navigate with 3D view or Satellite photo charts. An on board graphics coprocessor provides quick chart screen redraws and stunning 3D graphics.

By using the UniControl™ keypad you can integrate the cursor, the OK key and the rotary control for streamlining activities and easy feature selection.




 C-Series Widescreen Key Specifications:

Screen Resolution

C90W 800x480 WVGA

C120W 1280x800 WXGA

C140W 1280x800 WXGA

Video Inputs


Network Sensors

Digital Radar, Digital Sounder Module, SIRIUS Marine Weather







 SeaTalk (1st Generation)


 NMEA0183 Inputs


 NMEA0183 Outputs


 AIS Support






 Voltage Requirements

 10.7 to 32 Volts DC (12/24v nominal)

Power Consumption

Typical power consumption with full backlight on

C90W   19 Watts

C120W 22 Watts

C140W 32 Watts


Press for Raymarine's C-Series Chartplotter Widescreen models
