Garmin Quatix is a high precision GPS watch for nautical uses including sailing functions never before combined into a single clock. Functions such as remaining time countdown timer, virtual departure line and tacking assist are possible. Quatix marine watch is also equipped with a self-calibrating altimeter, barometer, 3-axis compass and temperature sensor. It can also share wireless information with other Garmin applications.

Garmin Quatix™ - Description

Garmin Quatix is designed for the passionate sailor of all types of vessels, from paddlers to kayakers, to sailors and power boaters, the Quatix offers unparalleled performance and attendance in a sturdy wristwatch.

Whether you find yourself in a boat race or leisurely sailing in your boat on the bay, the Quatix has it all. It is the only existing GPS watch that offers this wide range of functions including detection MOB if any of the crew fall into the sea, remote control of Garmin autopilot and information on wind data, depth and others.

Specialized Sailing Features
Quatix contains advanced tools and information for yachtsmen providing them with competitive advantages during competition or during training. Garmin Quatix can easily create a virtual line between two reference points, such as the edges of the starting line of a competition and then indicates the distance to that virtual line and the countdown time "to burn" as to enable the boat to cross exactly at the starting signal .

And once the race started, the Quatix watch switches to the Tack assistance function indicating the optimal angle for tacking the windward or leeward beacons and the ideal cornering direction.

NMEA 2000 Data in Your Wrist
If you link your Quatix to a Garmin GNT 10 NMEA transceiver (optional) it will display and transmit NMEA 2000 data such as wind speed, direction, depth and more.

Remotely Control Your Autopilot
Garmin Quatix also allows you to control your Garmin autopilot remotely so you can displace yourself in your boat and be kept constantly informed.

Automatic activation of alarm MOB "Man Overboard"
If any of the Quatix users crew falls overboard, the optional transceiver will activate the MOB ("Man Overboard") alarm in the chartplotter.

Review or Plan your Journey at Home
Using the Homeport™ software (sold separately) you can plot or revise your trip in a Windows or Mac computer and stream it to your watch. Or if you prefer, you can also connect wirelessly to your iPhone or iPad using the Blue Chart Mobile program. (sold separately)

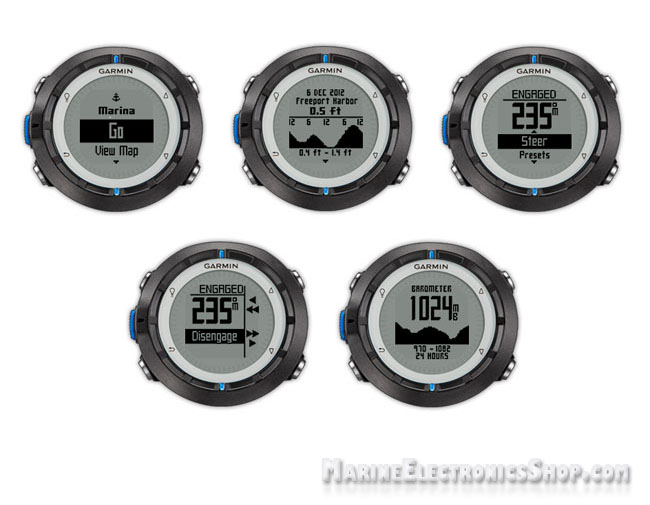

Garmin Quatix™ - Main Features

• Unique nautical watch GPS enabled and with ABC (altimeter, barometer and 3-axis compass)
• NMEA 2000® information
• Garmin autopilot remote control capability
• MOB detection (Man Overboard)
• Unique sailing competition features: (Countdown timer, tack assist, and virtual starting line)

Garmin Quatix™ - Other Features

• Garmin Quatix will provide you the time to the next waypoint, the final distance to your destination or the final estimated arrival time.
• The barometric altimeter will give altitude information
• The barometer will help to check and forecast weather variations by showing changes in the air pressure.
• The 3-axis electronic compass maintains bearing when moving or anchored.
• Tide tables are provided for more than 3,400 locations worldwide.
• In Tack Assist Mode the watch will show whether the vessel is being lifted or headed.
• The temperature sensor follows temperature changes helping you to determine further actions.
• Share routes, waypoints and bearings with other Garmin GPS devices and smart phones. Quatix Marine watch is provided with Bluetooth® technology and ANT™ capabilities.

Garmin Quatix™ - What's in the Box

• Quatix marine watch
• Dark gray band
• Light gray band
• Screws
• Torx tool
• USB/Charger cable
• AC adapter with plug
• Documentation

Back to Top

Garmin Quatix™ - Specifications

Physical & Performance:
Unit dimensions, WxHxD 1.9" x 1.9" x .7" (4.9 x 4.9 x 1.7 cm)
Display size, WxH 1.2” (3.1 cm) diameter
Display resolution, WxH 70 x 70 pixels
Display type transflective, monochrome LCD
Weight 2.9 oz (82 g)
Battery rechargeable lithium-ion
Battery life 16 hours (GPS mode)
Waterproof Yes (50m)
Floats No
High-sensitivity receiver Yes
Interface USB

Maps & Memory:
Basemap Yes
Preloaded maps no
Ability to add maps No
Built-in memory 20 MB
Accepts data cards no
Waypoints/favorites/locations 1000
Routes 50
Track log 10,000 points

Features & Benefits:
Automatic routing (turn by turn routing on roads) No
Electronic compass Yes (tilt-compensated 3-axis)
Touchscreen No
Barometric altimeter Yes
Camera no
Geocaching-friendly No
Custom maps compatible No
Photo navigation (navigate to geotagged photos) No
Hunt/fish calendar Yes
Sun and moon information Yes
Tide tables Yes
Area calculation Yes
Custom POIs (ability to add additional points of interest) Yes
Unit-to-unit transfer (shares data wirelessly with similar units) Yes
Picture viewer No
Garmin Connect™ compatible (online community where you analyze, categorize and share data) Yes
Additional Watch functions: time, date, alarm, timer, chronograph, chimes and vibration
