Garmin Striker 4dv (010-01551-01)

  • Marine Electronics Garmin Striker 4dv (010-01551-01)
  • Marine Electronics Garmin Striker 4dv (010-01551-01) Side
  • Marine Electronics Garmin Striker 4dv Side
  • Marine Electronics Garmin Striker 4dv
Your Price:
$204.90 (You save $65.00)
0.25 KGS
Usually ships within 24 hours.
$5.00 (Fixed shipping cost)

Product Description


Brand New

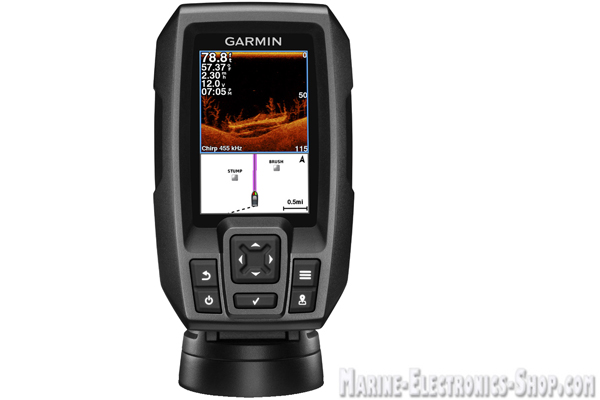

Garmin Striker 4dv



Marine Electronics Garmin Stricker 4dv


Garmin Striker 4dv is an easy to use fishfinder with color display 3.5", built-in high sensitivity GPS receiver and scanning sonar Garmin CHIRP DownVü™

In the box - Garmin Striker 4dv 010-01551-01 :


  • STRIKER 4dv
  • GT20-TM transducer
  • Transom and trolling motor mounts
  • Tilt/swivel mount
  • Power cable
  • Documentation


Description - Garmin Striker 4dv 010-01551-01

Garmin STRIKER 4dv with color display 3.5 "and built-in GPS-receiver includes a four-beam sensor GT 20, with a working frequency of 77/200/455/800 kHz and with Garmin CHIRP DownVü ™ technology, a sonar power of 300 W. Advanced technology Garmin CHIRP DownVü ™ allows you to get a more detailed picture of the bottom, underwater objects and fish. The Striker 4dv fishfinder has a mode of displaying fish on the screen in the form of symbols. The device allows to improve the system for obtaining high power CHIRP with the GT22 or GT23 transducer (sold separately). The Garmin STRIKER 4dv allows using the navigation system to mark successful fishing spots to return to saved points, and to exchange data (waypoints and routes) with other models of the STRIKER and echoMAP ™ series. With the built-in Smooth Scaling ™ function, the image will not be interrupted when the depth scale range is switched. You can mark the waypoints you missed earlier in when viewing archive images. Built-in flasher for winter fishing. The navigation system Garmin STRIKER 4dv allows you to save the track and the marked points on the screen. In addition, you will always find the way back to the parking lot, seeing the distance traveled.

 Marine Electronics Garmin Striker 4dv  Marine Electronics Garmin Striker 4dv
 Marine Electronics Garmin Stricker 4dv  Marine Electronics Garmin Striker 4dv




 Back to Top

Features and benefits of Garmin Striker 4dv 010-01551-01

CHIRP Transducer

The fishfinder Garmin Striker 4dv includes the Garmin CHIRP (77/200 kHz) transducer, which provides a higher level of detail and detail in fish images and underwater objects compared to traditional 77/200 kHz transducers.

Instead of transmitting a single frequency signal, the CHIRP continuously sends a signal that includes a whole range of frequencies, from low to high, and then separately deciphers the received reflected signals. Since this signal includes more information, the CHIRP technology allows Garmin Striker 4dv to provide a sharper arches denoting fish, with better separation of targets.

You can improve your Striker 4dv with Garmin's high-power CHIRP technology so that the resulting images have even greater clarity, resolution and resolution at a small and large depth. In this case, the contours of the bottom will be better distinguished even at high speeds, and noise can be suppressed at a greater depth to ensure timely interpretation of images of the underwater region.

The sharpest sonar scan on the water

Scanning sonar Garmin DownVü provides almost photographic quality images of objects that are under your ship at a depth of 225 meters. You can clearly view underwater structures, objects and fish. Garmin Striker 4 dv's transducer combines the traditional sonar Garmin CHIRP and the scanning sonar CHIRP DownVü.

Point marking using a high-sensitivity GPS receiver

Unlike conventional fishfinders, Garmin Striker 4dv is equipped with a built-in high-sensitivity GPS receiver that provides fast and accurate position calculation and supports signal reception anywhere in the lake. Striker 4dv allows you to mark the points of successful fishing so that in the future you can easily find good places. In addition, you can mark objects such as docks, slips, etc. on the lake. To return to the selected point, you just need to follow the track on the screen.


Garmin Striker 4dv equipped with highly sensitive GPS receivers, so you can view your location relative to the marked waypoints. Using a map with waypoints, you can easily view, mark, and select locations such as piles and docks as your destination. In addition, such a map is an excellent tool for finding the way back to the pier.

Viewing the speed on the screen

You can quickly and easily find out the speed of your vessel using the screen of Garmin Strike 4dv. In this way, you can determine if the correct speed was chosen during fishing for trolling or during navigation in zones with speed control.

Stationary fishing

Striker 4dv includes both a fish finder and a flasher. If you are stationary while fishing (for example, ice fishing), the built-in flash will show the type of bottom (solid or silty), your bait and the depth at which the fish is located, if it is in the area of ​​the echosounder beam. You can observe the range of lifting and lowering the bait. Also, the Garmin Striker 4dv will show you whether the fish is moving towards or from the bait.

Take fish finder in any trip

To protect the Garmin Striker 4dv with the GPS-receiver during trips, a special portable kit is offered. Thus, you can take the Striker 4dv with you on a fishing trip with a kayak or canoe, and also on ice fishing. The kit includes a built-in transducer cable.

Back to Top

Specifications - Garmin Striker 4dv 10-01551-01 :


Physical dimensions 3.6'' x 5.9'' x 1.6'' (91.6 x 150.8 x 42.8 cm)
Weight 8.1 oz (230g)
Water rating IPX7
Display type HVGA color
Display size 1.9'' x 2.9'' (4.9 x 7.3 cm); 3.5'' diag, (8.7 cm)
Display resolution 480 x 320 pixels

Sonar Features & Specifications

Dual-frequency (50/200 kHz) sonar capable Yes
Dual-beam (77/200 kHz) sonar capable Yes
Frequencies supported

Traditional: 50/77/200 kHz

CHIRP (mid and high)

ClearVü: 260/455/800 kHz

Transmit power 300 W (RMS)
Maximum depth 1,750 ft freshwater*, 830 ft saltwater*
Bottom lock (shows return from the bottom up) Yes
Water temperature log and graph                                    Yes

Fishfinder Features

Split-screen zoom  Yes
Ultrascroll® (displays fish targets at higher boat speeds)  Yes
Fish Symbol ID (helps identify fish targets)  Yes
AutoGain Technology (minimizes clutter, maximizes targets)  Yes
Adjustable depth line (measures depth of underwater objects)  Yes
A-scope (real time display of fish passing through transducer beam)  Yes
Water temperature sensor included  Yes


  • Tilt/swivel mount
  • Integrated GPS
  • Mark Waypoints
  • Course over ground (COG)
  • Current draw @ 12V: 0.40A












Warranty Information

1 Year Warranty
