Raymarine ST40 Compass Display E22042

  • Image 1
1.50 KGS
Free Shipping

Product Description

Brand New

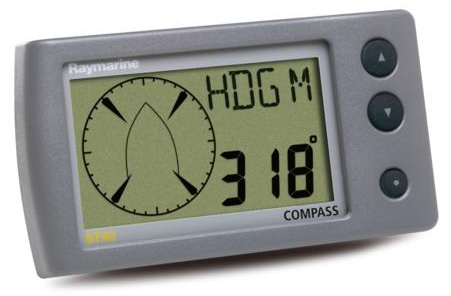

Raymarine ST40 Compass Display

ST40 Display for Compass System


Raymarine ST40 Compass system  offers all essential heading information, big and clear display with cristal sharp digits.

ST40 Compass Display could be installed as a master display connected to a fluxgate transducer (sold seperately) or as a repeater for displaying heading data at multiple locations. The ST40 Compass Display is SeaTalk compatible and integrates with Raymarine autopilots, Raymarine Chartplotters (multifunction displays) and other navigation equipment.

The ST40 Compass Display has big high contrast LCD display with extra-large 7 segment 28mm sized digits and a 36 segment analogue dial display for excellent visibilityin all lighting conditions and 3 levels of display-backlighting for night use.

ST40 Compass Display displays heading data in true and magnetic bearing mode and allows the user to lock a bearing manually or automatically via a Raymarine autopilot course computer. In this mode ST40 Compass shows deviations from locked bearing and the direction to steer to achieve the locked bearing heading. ST40 Compass displays current compass heading plus locked heading, has ‘off course’ alarms and can be used as a ‘Man Over Board’ repeater.

Mounting hardware's (bezels for surface and bracket) color of ST40 Compass Display could be chosenbetween 3 finishes (Carbon fiber, Silver, Grey).

The Raymarine ST40 Compass Display includes display, sun cover, SeaTalk cable, mounting hardware and instructions.


Raymarine ST40 Compass Display Features:

  • SeaTalk compatible for networking to other instruments, multifunction displays and autopilots
  • High contrast LCD display for excellent visibility
  • 3 levels of display backlighting for night use
  • Large digits and analog readout for visibility across the cockpit
  • True or magnetic bearing information
  • User or autopilot initiated locked bearing mode
  • Integrated direction to steer and course deviation indicators
  • User adjustable off course alarm
  • Master or repeater operation for repeating compass data at another location

Raymarine ST40 Compass Display Specifications:

  Supply voltage: 10 V to 16 V dc.
  Current consumption (12 V supply): 20 mA typical. 60 mA with maximum backlighting.
  Operating temperature: 0°C to +70°C.
  Interfaces: SeaTalk.
  Overall dimensions: 126 mm x 70 mm x 38 mm (5.00 inches x 2.80 inches x 1.55 inches).
  Boss diameter: 55 mm (2.20 inches).
  Heading range: 0 to 359°.
  Off course alarm: 2° to 30° (port or starboard).
  CE - conforms to 89/336/EC(EMC), EN60945. 94/25/EC(RCD), EN28846 (applies to transducer only).
