Raymarine ST40 Wind Display E22041

  • Image 1
1.50 KGS
Free Shipping

Product Description

Brand New

Raymarine ST40 Wind Display

ST40 Display for Wind System

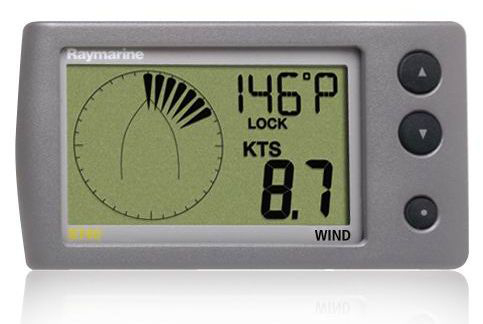

st40-wind-display.jpgRaymarine ST40 Wind Display for use in Seatalk or ST40 systems as a repeater or installed as a master display combined with Rotavecta Wind Transducer.


Raymarine ST40 Wind Display could be installed as a master display combined with Rotavecta transducer (sold seperately) or as a repeater for displaying wind data at multiple locations. The ST40 Wind Display is SeaTalk compatible and integrates with Raymarine autopilots, Raymarine Chartplotters (multifunction displays) and other navigation equipment.

The ST40 Wind Display has big high contrast LCD display with extra-large 7 segment 28mm sized digits and a 36 segment analogue dial display for excellent visibilityin all lighting conditions and 3 levels of display-backlighting for night use. Wind Speed display units can be chosen between knots (KTS) or metres per second (M/S).

ST40 Wind Display provides all essential wind data, apparent wind speed and direction and when combined with a SeaTalk Speed instrument, true wind speed and direction are given too. Wind deviation is displayed and a course for steering could be locked manually or automatically while the instrument shows the deviations from the locked wind angle and the direction to steer to achieve the locked wind angle. Data is provided for autopilot to steer your boat to a saved apparent wind angle.

Mounting hardware's (bezels for surface and bracket) color of ST40 Wind Display could be chosenbetween 3 finishes (Carbon fiber, Silver, Grey).

The ST40 Wind Display includes a SeaTalk cable, mounting hardware, suncover and instructions.

Raymarine ST40 Wind Display Features:

SeaTalk compatible for networking to other instruments, multifunction displays and autopilots

  • High contrast LCD display for excellent visibility
  • 3 levels of display backlighting for night use
  • Large digits and analog readout for visibility across the cockpit
  • Apparent wind speed and direction readout
  • True wind speed and direction readout (when connected to SeaTalk compatible speed instrument)
  • Speed readout in knots or meters per second
  • Manual or autopilot initiated locked heading mode
  • User programmable high wind speed alarm

Raymarine ST40 Wind Display Specifications:

  Supply voltage: 10 V dc to 16 V dc.
  Current consumption (12 V supply): 25 mA typical. 60 mA with maximum backlighting.
  Operating temperature: 0°C to +70°C.
  Interfaces: SeaTalk.
  Overall dimensions: 126 mm x 70 mm x 38 mm (5.00 inches x 2.80 inches x 1.55 inches).
  Boss diameter: 55 mm (2.20 inches).
  Wind speed range: 0 to 60 knots.
  High true wind speed alarm: 5 knots to 50 knots.
  Wind angle 180° port to 180° starboard.
  CE - conforms to 89/336/EC(EMC), EN60945.
