Raymarine ST60 Plus Compass System Instrument A22014-P

  • Image 1
  • Image 2
Your Price:
$636.00 (You save $79.00)
1.50 KGS
Free Shipping

Product Description

Brand New

Raymarine ST60 Plus Compass System

ST60 Plus Display with Fluxgate Compass Sensor Included


Raymarine ST60 Plus Compass System, Award winning Instrument providing reliable and Accurate magnetic heading and course deviation information on both Analog and LCD display, simple operation with flexible mountings.

The ST60 Plus Compass System could be installed as a master display Connected to the included fluxgate compass sensor or as a repeater receiving data from another device connected to the SeaTalk data network like another ST60 Plus Compass instrument or Raymarine autopilots, Raymarine Chartplotters and Fishfinders (multifunction displays), Radar and other navigation equipment. To use as a repeater, simply Plug and Play-connect to the SeaTalk network and configure the Instrument as a repeater.

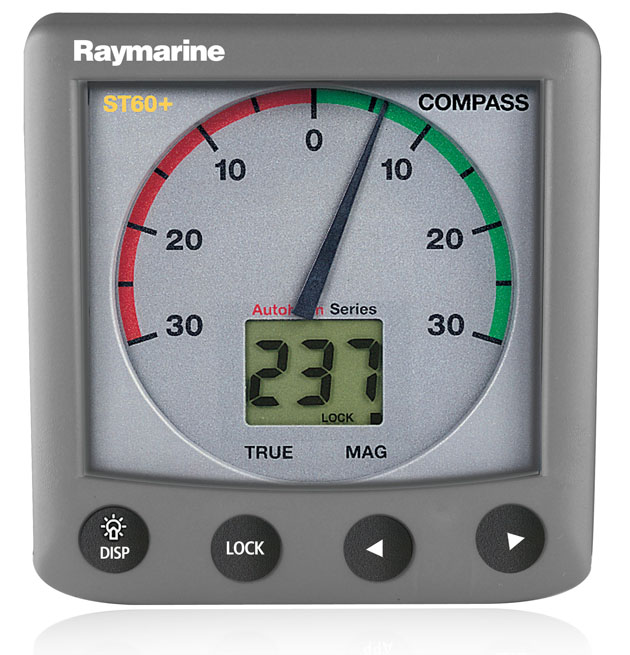

The ST60 Plus Compass System has an analog pointer display and a big and High contrast 34mm segmented LCD display with large 13mm sized bold digits that provide a better viewing angles for both day and with 3 levels of display-backlighting for night. The display is built in a waterproof case by IPX6 & CFR46 standards to provide reliable performance even in bad weather or under the most demanding conditions.

The Raymarine ST60 Plus Compass System delivers reliable and accurate data. Compass heading is shown in the digital display and in locked-heading mode the pointer shows the steering diviation of the locked course from -30º to 30º. The ST60 Plus Compass Instrument also displays Course Over Ground (COG) and average heading when interfaced with a SeaTalk GPS receiver.

Raymarine ST60 Plus Compass instrument offers convenient and flexible mounting method either surface mounted onto your console, dashboard or bulkhead, flush-instalation or a table-top Mounting.

The ST60 Plus Compass System comes with display unit, fluxgate compass transducer, sun cover, SeaTalk and power cables, surface mount kit and complete instructions

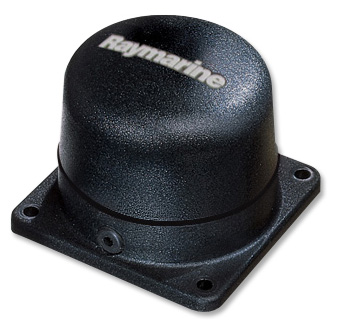

ST60 Plus Fluxgate Transducer



Raymarine ST60 Plus Compass System Features:

  • Current, locked and average heading displays
  • Magnetic or true hading readout
  • Course Over Ground (COG) display when connected to SeaTalk GPS source.
  • Adjustable display response.
  • Standard surface mount kit included, optional flush or bracket mounts available.
  • Intuitive 4-button control layout.
  • Expandable SeaTalk networking technology enables connection to Raymarine autopilots, multifunction displays, radars, chartplotters and fishfinders.
  • Compatible with the wireless SmartController autopilot control and instrument repeater.


Raymarine ST60 Plus Compass System Specifications:

  Nominal voltage (volts DC) 12V systems
  Absolute voltage range 10 – 16 volts
  Power consumption (typical) mA 65mA
  Overall dimensions (WxHxD) mm (standard bezel) 110x115x39
  Mounting methods flush/surface/bracket
  Control type(s) 4 backlit buttons
  Display size and type 34mm segmented LCD & pointer
  Maximum character size 13mm
  Display lighting 3 levels plus off
  SeaTalk 2 connections
  NMEA input and output (0183) option via E85001
  PC (RS232) and RayTech interface option via E85001
  EMC (Europe and FCC) Yes
  CE marked Yes
  Operating temperature range -10°C to +70°C
  Non-operating temperature range -20°C to +70°C
  Humidity up to 95%
  Waterproofing standard IPX6 & CFR46
Display Pages
  Heading Data Current, locked, average
  Heading readout Degrees magnetic or true
  Course Over Ground Yes When SeaTalk GPS is available.
Additional Features
  Soft Power Down Yes
  Adjustable Display Response Time LCD and pointer
