Product Description

Brand New

Raymarine ST60 Plus Depth System

ST60 Plus Display with ThruHull Transducer Included

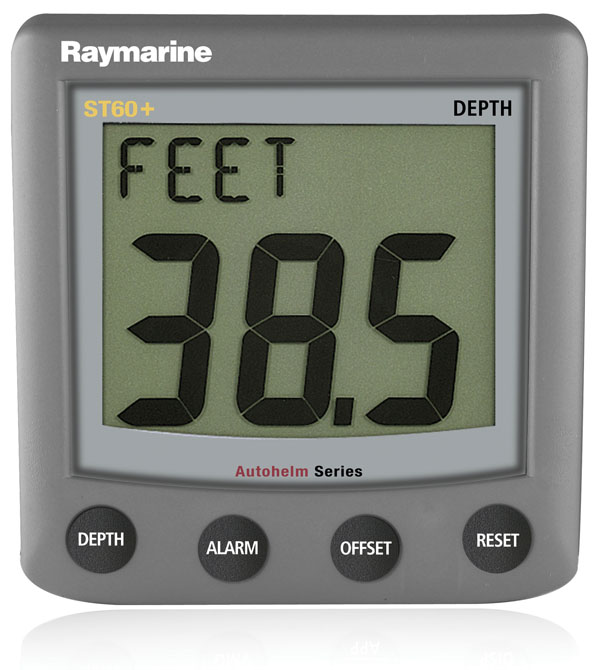

st60-depth-display.jpgRaymarine ST60 Plus Depth System, Award winning Instrument , extra large Digits, high quality wide viewing LCD display, simple operation, a reliable depth performance and accuracy Instrument with flexible mountings.

The ST60 Plus Depth instrument could be installed as a master display Connected to the included Trhu-Hull Transducer or as a repeater receiving data from another depth-calculating device connected to the SeaTalk data network like Raymarine autopilots, Raymarine Chartplotters and Fishfinders (multifunction displays), Radar and other navigation equipment. To use as a repeater, simply Plug and Play-connect to the SeaTalk network and configure the Instrument as a repeater.

The ST60 Plus Depth System has a big and high contrast 92mm LCD display with extra-large 36mm sized bold digits that provide a better viewing angles for both day and with 3 levels of display-backlighting for night. The display is built in a waterproof case by IPX6 & CFR46 standards to provide reliable performance even in bad weather or under the most demanding conditions.

The Raymarine ST60 Plus Depth delivers reliable depth performance and accuracy. Depth display units can be chosen between feet (FT), meters (M) or fathoms (FA). The ST60 Plus depth range is from 2.6’ to 600’ (0.8 – 180 m) while current, maximum and minimum depth is displayed. Alarms can be defined for shallow water, deep water, shallow anchor and deep anchor. A keel and waterline offsets could be set according to your boat's characteristics and be displayed at any time.

Raymarine ST60 Plus Depth  instrument offers convenient and flexible mounting method either surface mounted onto your console, dashboard or bulkhead, flush-instalation or a table-top Mounting.

The ST60 Plus Depth System comes complete with display unit, sun cover, SeaTalk and power cables, Thru-hull depth transducer, surface mount kit and complete instructions.

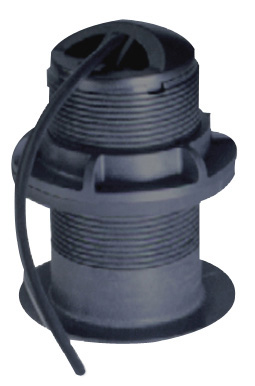

ST60 Plus Depth ThruHull Transducer




Raymarine ST60 Plus Depth System Features:

  • Depth performance from 2.6'-600' (0.8-180m).
  • Maximum and minimum depth display.
  • Depth trend indicator.
  • Adjustable display response.
  • Extra-large digits with high contrast and wide viewing angle.
  • Transducer, keel or waterline offset.
  • Standard surface mount kit included, optional flush or bracket mounts available.
  • Intuitive 4-button control layout.
  • Expandable SeaTalk networking technology enables connection to Raymarine autopilots, multifunction displays, radars, chartplotters and fishfinders.
  • Compatible with the wireless SmartController autopilot control and instrument repeater.


Raymarine ST60 Plus Depth System Specifications:

Power
  Nominal voltage (volts DC) 12V systems
  Absolute voltage range 10 – 16 volts
  Power consumption (typical) mA 45mA
Physical
  Overall dimensions (WxHxD) mm (standard bezel) 110x115x39
  Mounting methods flush/surface/bracket
  Control type(s) 4 backlit buttons
  Display size and type 92mm segmented LCD
  Maximum character size 36mm
  Display lighting 3 levels plus off
Connections
  SeaTalk 2 connections
  NMEA input and output (0183) option via E85001
  PC (RS232) and RayTech interface option via E85001
Approvals
  EMC (Europe and FCC) Yes
  CE marked Yes
Environmental
  Operating temperature range -15°C to +55°C
  Non-operating temperature range -25°C to +70°C
  Humidity up to 95%
  Waterproofing standard IPX6 & CFR46
Display Pages
  Depth data current/min/max
  Depth range (m) (transducer dependant) 0.8 to 180m (600')
  Depth offsets keel/waterline/transducer
  Depth alarms shallow/deep/anchor
  Depth units metre/fathom/feet
  Transducer alignment and calibration (master only) manual
Additional Features
  Depth trend arrows Yes
  Autopilot Status Repeater Yes
  Soft Power Down Yes
  Adjustable Display Response Time Yes
