Raymarine ST60 Plus Speed system Instrument A22010-P

  • Image 1
  • Image 2
RRP:
$556.00
Your Price:
$488.00 (You save $68.00)
SKU:
A22009-P
Brand:
Condition:
New
Weight:
1.50 KGS
Shipping:
Free Shipping
Quantity:


Product Description

Brand New

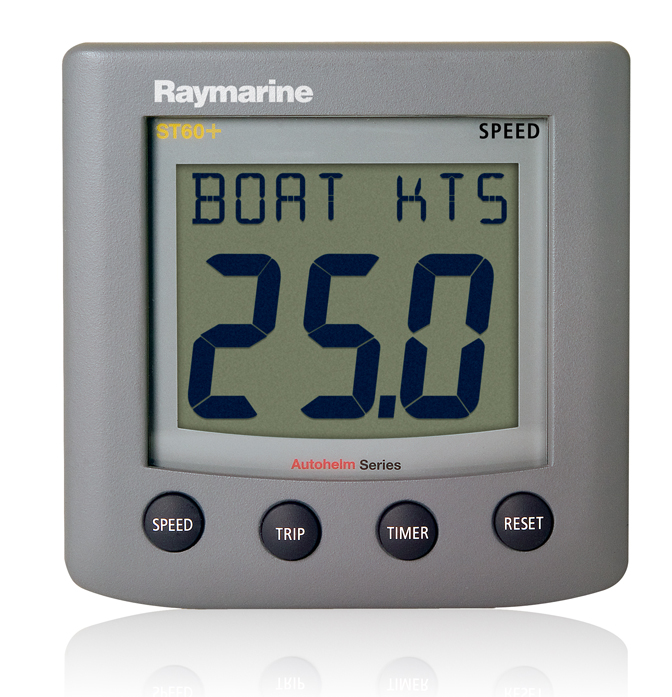

Raymarine ST60 Plus Speed System

ST60 Plus Display with ThruHull Transducer Included



Raymarine ST60 Plus Speed System, Award winning Instrument , extra large Digits, high quality wide viewing LCD display, simple operation, a reliable Speed performance and accuracy Instrument with flexible mountings.

The ST60 Plus Speed instrument could be installed as a master display Connected to the included Trhu-Hull Transducer or as a repeater receiving data from another speed-calculating device connected to the SeaTalk data network like Raymarine autopilots, Raymarine Chartplotters and Fishfinders (multifunction displays), Radar and other navigation equipment. To use as a repeater, simply Plug and Play-connect to the SeaTalk network and configure the Instrument as a repeater.

The ST60 Plus Speed System has a big and high contrast 92mm LCD display with extra-large 36mm sized bold digits that provide a better viewing angles for both day and with 3 levels of display-backlighting for night. The display is built in a waterproof case by IPX6 & CFR46 standards to provide reliable performance even in bad weather or under the most demanding conditions.

The Raymarine ST60 Plus Speed delivers reliable speed performance and accuracy. Speed display units can be chosen between knots (KTS), miles per hour, (MPH) or kilometers per hour (KPH) for Current and Maximum speed and for Average speed, Velocity Made Good (VMG) and Speed Over Ground (SOG) that are calculated by the ST60 Plus Speed. A track of distances traveled is kept in resetable boat l og and trip information is presented in nautical miles (NM), statute miles (M) or kilometers (KM). Water temperature is displayed in Celsius or Fahrenheit degrees. The ST60 Plus Speed instrument includes a count-up timer and 2 race-start timers.

Raymarine ST60 Plus Speed instrument offers convenient and flexible mounting method either surface mounted onto your console, dashboard or bulkhead, flush-instalation or a table-top Mounting.

The ST60 Plus Speed System comes complete with display unit, sun cover, SeaTalk and power cables, Thru-hull speed/temp. transducer, surface mount kit and complete instructions.




ST60 Plus Speed/Temp.ThruHull Transducer




Raymarine ST60 Plus Speed System Features:

  • Current, maximum and average speed displays.
  • Speed performance from 0 to 60 knots.
  • Log range from 0 to 99,999 nautical miles.
  • Trip range from 0 to 999 nautical miles.
  • Temperature range from -10°C to +40°C
  • User selectable 'Pop Up Pilot' display reports changes to connected SeaTalk autopilot mode or course settings.
  • Speed Over Ground (SOG) display (when interfaced with SeaTalk compatible GPS)
  • Velocity Made Good display (when interfaced with SeaTalk compatible wind instrument.)
  • Adjustable display response.
  • Extra-large digits with high contrast and wide viewing angle.
  • Manual or automatic calibration from GPS speed over ground (SOG).
  • Standard surface mount kit included, optional flush or bracket mounts available.
  • Intuitive 4-button control layout.
  • Expandable SeaTalk networking technology enables connection to Raymarine autopilots, multifunction displays, radars, chartplotters and fishfinders.
  • Compatible with the wireless SmartController autopilot control and instrument repeater


Raymarine ST60 Plus Speed System Specifications:

Power
  Nominal voltage (volts DC) 12V systems
  Absolute voltage range 10 – 16 volts
  Power consumption (typical) mA 45mA
Physical
  Overall dimensions (WxHxD) mm (standard bezel) 110x115x39
  Mounting methods flush/surface/bracket
  Control type(s) 4 backlit buttons
  Display size and type 92mm segmented LCD
  Maximum character size 36mm
  Display lighting 3 levels plus off
Connections
  SeaTalk 2 connections
  NMEA input and output (0183) option via E85001
  PC (RS232) and RayTech interface option via E85001
Approvals
  EMC (Europe and FCC) Yes
  CE marked Yes
Environmental
  Operating temperature range -15°C to +55°C
  Non-operating temperature range -25°C to +70°C
  Humidity up to 95%
  Waterproofing standard IPX6 & CFR46
Display Pages
  Speed Data current/max/average/SOG
  Speed range (knots) (transducer dependant) 0 to 60kts
  Speed Resolution 1/100 knot resolution
  Log range (nm) 0 to 99999nm
  Trip range (nm) 0 to 000nm
  Speed Units knots/kph/mph
  Water temperature (transducer dependant) -10°C to +40°C
  VMG (Velocity Made Good) Yes When interfaced to a SeaTalk compatible Wind system.
  SOG (Speed Over Ground) Yes When interfaced to a SeaTalk compatible GPS system.
  Autopilot Status Repeater Yes
Additional Features
  Autopilot Status Repeater Yes
  Soft Power Down Yes
  Adjustable Display Response Time Yes
