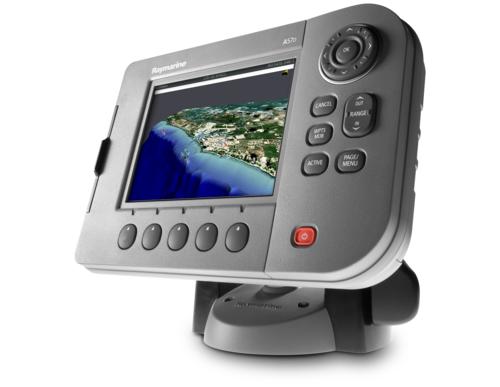

Raymarine A70D Chartplotter/Fishfinder 6.4'' Display (no charts)

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
RRP:
$1,747.00
Your Price:
$1,469.00 (You save $278.00)
SKU:
E62192
Brand:
Condition:
New
Weight:
1.46 KGS
Shipping:
Free Shipping
Quantity:


Product Description

Brand New

Raymarine A70D Chartplotter/Fishfinder

A-Series Multifunction Display
Navigation Systems

(no preloaded charts)



The Raymarine A70D Chartplotter/Fishfinder is a powerful advanced chartplotting navigation system combined with Raymarine's award winning HD digital Fishfinder.The display is a 6.4” high resolution color VGA that is viewable even in direct sunlight. The special waterproof construction make the A70D a perfect fit for open cockpits and center consoles.

This A70D does not include any preloaded charts. However you can use any of the NAVIONICS charts, U.S. Costal, U.S. Inland Lake & Rivers or local charts in the rest of the world. Using the built-in card reader you can simply plug any charts card like NAVIONICS Gold, NAVIONICS Platinum or HOTMAPS and upgrage your chartplotting to 3D bathymetric views, satellite photo maps, panoramic port photos, dynamic tides & currents, enhanced coastal points of interest and more!

Each Raymarine A70D features a high sensitivity internal WAAS GPS receiver built into the display so no extra antenna or cables are required. Simply mount the unit on your dash or console and get excellent GPS pinpoint chartplotter accuracy. For situations where an external antenna is needed, you can add a RayStar 125 GPS antenna.

Combine GPS and VHF technology for added situational awareness and safety. The A70D utilizes DSC position polling (with DSC equipped VHF) and AIS target tracking (with optional AIS250) right on your chart.

Raymarine A70D Chartplotter has a built-in digital sounder module for Fishfinder features. With the amazing Raymarine’s HD Digital fishfinder technology, the A70D’s offers unmatched fishfinding clarity and precision. Raymarine’s patented HD Digital technology enables the A70D to instantly adapt to changing water and seabed conditions, delivering a dramatically clearer picture than ordinary analog fishfinders. The HD Digital technology enables true “hands-free” automatic operation, for an optimal fishfinder display at all times. Also enjoy full chartplotter integration, the A70D lets you mark wrecks and fish targets as waypoints. Easily switch screens back to the chartplotter and navigate right to your target!

You just need to plug in to the included transom mount transducer and you have the ultimate digital fishfinder. Using the same patented HD Digital technology the A70D’s built-in sounder packs 500 watts RMS of power with a dual frequency (50/200 Khz) transceiver for excellent inshore and offshore performance. Directly compatible with the full array of A Series transducers, and adaptable to the DSM300 family of transducers, a wide selection of styles are available to fit almost any boat including transom mounts, thru-hull mounts and in-hull solutions.

The A70D Chartplotter comes with a tilt and swivel bracket so you can easily change it's position for best viewing. Easily turn the lever to the other side and quick release the A70D to take it with you when you leave the boat. The built-in cable management system keeps your cables neat and tidy and also prevents water going down your console. Once the A70D is off the boat the the cables are safely left with protective cable caps. The Display can be also console mounted with a special included kit.

You can add the SR50 weather receiver and get a full graphical marine weather forcast to your A70D. Using SIRIUS Satellite weather technology (US only) the A70D gets the most recent forecast information including weather radar, storm tracks, winds, lightning, temperatures of sea surface, surface pressure, wave heights and more. The A70D is also SIRIUS Satellite radio capable. By connecting  the SR50 to your boat's stereo you will get over 130 channels of satellite radio entertainment, commercial free music, sports, news and more. You have full control of channels and volume with the A70D keypads.

The Raymarine A70D
Chartplotter/Fishfinder comes packaged with a tilt & swivel bracket, suncover, power NMEA cable, and instruction manual. The A70D is also SeaTalkNG capable allowing for engine monitoring with compatible engines. With SeaTalkNG you can even activate and control your Raymarine X- Series SmartPilot directly from the A70D’s chartplotter





Raymarine A70D Chartplotter/Fishfinder Features:

A70D 6.4" Display Chartplotter/Fishfinder

  • 6.4'' sunlight viewable colour display
  • High resolution VGA (640 x 480)
  • IPX6 waterproof construction
  • Tilt & swivel bracket with quick release and cable management
  • Activate and control a Raymarine SPX Series autopilot directly from the A70's chartplotter screen
  • Two NMEA 0183 Input and Output ports

A70D - Chartplotter Features

  • No preloaded cartography. Use optional Navionics Gold or Platinum charts.
  • High speed chart redraw
  • Chart Rotation Modes (Head up, Course up and North Up)
  • 1200 Waypoints and 150 routes with unlimited waypoint and route storage using optional CompactFlash memory card
  • High sensitivity internal WAAS GPS sensor
  • Navionics Gold and Platinum capability
  • 3D and satellite photo charts (with optional Platinum Chart Card)
  • AIS target tracking (with optional AIS250 module)

A70D - Fishfinder Features

  • Superior fishfinder performance using the Built-in Digital Sounder Module
  • 500 Watts RMS Output power
  • Raymarine’s patented HD Digital™ fishfinder technology
  • Dual frequency (50/200 kHz) for excellent inshore and offshore performance
  • Hands-free HD Digital™ technology automatically adjust more than 220 sonar parameters per second and virtually eliminates clutter
  • HD Digital™ adaptive receiver technology precisely targets fish and bottom structure with amazing clarity
  • Transom mount transducer with depth-speed-temperature included. Additional transom, in-hull, trolling motor and thru-hull transducer options available.

A70D - SIRIUS Weather & Audio Features (US only)

  • SIRIUS Satellite weather and radio with optional SR50
  • Graphical Nowrad radar, sea surface temperature, storm tracks, and more!
  • SIRIUS Satellite radio capability. Set reminders for favourite songs and artists on over 100 SIRIUS radio channels.

A70D - Engine Monitoring

  • Connect NMEA 2000 compatible engines with SeaTalkNG
  • Create customizable pages for engine data, trim tabs, instrument data, and more!

Raymarine A70D   6.4 " Multifunction DisplaySpecifications:

General

  • Data Display Capabilities: Chartplotter, CDI(Course Deviation Indicator), and customizable Data Bar display
  • Dimensions: (W x H x D) 233 x 171 x 43mm
  • Display (LCD) size: 6.4"
  • Display colors: 256
  • Display resolution: 640 x 480 pixels (VGA)
  • Display type: Sunlight viewable colour TFT LCD
  • Mounting methods: Tilt & Swivel Bracket (Panel Mount optional)
  • Operating and non operating temperature limits: 14°F to 122°F (-10°C to 50°C)
  • Power consumption: 6-8 Watts
  • Voltage range: 10.7-18 volts (12v nominal)
  • Waterproofing: IPX6 Standards
  • Weight: 8.4lbs
  • Approvals CE - conforms to FC Compliant with: Essential requirements of 1995/5/EC, 1989/336/EC. CFR47 Parts 2 & 80
  • Humidity Limit: up to 95% at 35°C non-condensing
  • Display windows: Chart, CDI, Data, Weather, and Engine Monitor
  • Illustration: Screen and keypad: 0 to 100% in 64 steps Day/Night Mode
  • Languages: English (UK), English (US), Italian, French, Spanish, German, Norwegian, Dutch, Swedish, Danish, Portuguese, Finnish, Icelandic, Chinese, Russian, Greek, Japanese, Korean
  • System alarms: Alarm clock, Anchor, Arrival, Deep depth, MOB, Offtrack, Shallow depth, Temperature, Timer
  • Navigation alarms: Arrival alarm, offtrack XTE alarm

AIS

  • Target Symbols: Sleeping, activated, selected, dangerous and lost.
  • Target Information: AIS vectors, safety critical data and full AIS data.
  • Collision Avoidance: Safe zones and safety messages.
  • Alarms: Local alarm messages, lost targets.
  • AIS overlay: Switch AIS symbols on/off. Display heading/speed vectors and ROT. View detailed AIS data, safety critical target data, ALR and SRM messages. Set up a safe zone.

Chartplotter

  • Waypoints: 1200 Waypoints with 16 character names. Additional waypoint storage available on CompactFlash cards.
  • Waypoints Transfer: Waypoints database via NMEA and CompactFlash cards.
  • Man Overboard (MOB Mode): Mark placed with course line; readout shows range, bearing, lat/lon of MOB and time elapsed since MOB
  • Screen Functions: Full, half and quarter screens available dependant on function. Also 3 window page with 2 x 1/4 page windows and 1 x 1/2 page window
  • Cartography: No preloaded cartography. Compatible with Navionics Gold & Platinum Charts on CompactFlash cards
  • Presentation Modes: Head up, Course up or North up (selectable True or Magnetic). Relative, Autorange or True Motion. Screen offset. 3D synchronisation.
  • Routes: 150 routes with 50 waypoints per route. Additional routes can be stored CompactFlash cards
  • Track History: Ability to record the current track with a maximum of 10,000 trackpoints, or save up to 10 tracks with up to 1000 trackpoints in each stored in the units internal memory. Additional tracks can be stored CompactFlash cards
  • 3D/Chart Synchronisation: To synchronise 3D and 2D chart scales and orientation.
  • Aerial overlay: Overlay of aerial photograph on the chart
  • Navigation information: Own boats position in lat/lon, XTE, TTG and SOG/COG selectable. Bearing and distance to waypoint. Bearing and distance to cursor and ETA
  • 3D Presentation Modes: Active motion mode, planning mode, Adjust rotation and pitch, port, starboard, forward and aft view, multiple views, Vessel offset
  • 3D Display: Declutter, Transducer cone, Depth scale, Waypoint name, Adjust exaggeration, 3D view locator

Fishfinder

    • Transducer: Transom-mount, in-hull or thru-hull options
    • Receiver Type: Patented Raymarine HD Digital receiver technology
    • Power output: 500 Watts RMS
    • Frequency: Duak 200/50 kHz
    • Alarms: Fish alarm, fish alarm depth, shallow and deep fish limit
  • A Scope Display: Displays Sonar Returns in real time
  • Bottom Coverage Display: Shows the diameter of the transducer beam where it meets the bottom.
  • Bottom Lock: Displays echoes directly above the bottom.
  • Range markers: Easily see how far the boat is from a target on the echo sounder screen
  • Target Detection: Sonar fish echo with target depth readout
  • Zoom: 2,3,4x and user programmable Zoom scales

Instrument and Engine Data

  • Data pages: 5 pages available. Pre-defined (Navigation, Waypoint, Route, Fishing or Sailing) or user-configured.
  • Data available: Vessel position, active waypoint, TTG, VMG - Waypoint, depth, COG SOG, heading, speed, set/drift, trip, log, ground log, ground trip, rudder, local time and date, sea temperature, app wind, true wind, VMG wind, ground wind XTE, compass, locked heading, wa
  • Engine pages: 5 pages available. Pre-defined (engine, engine and fuel, fuel resources, engine and resources, twin engines or triple engine support) or user-configured.
  • Engine data available: Tacho, boost pressure, alternator, oil pressure, coolant temperature, engine hours, fuel level (tanks 1 & 2), fuel rate, total fuel, load, trim tab, engine trim and genset

Interfaces

  • NMEA 0183 Interface: 2 Input and Output ports
  • NMEA 0183 Input messages: GLL, GGA, GLC, GTD, VTG, BWC, BWR, RMA, RMB, RMC, XTE, VHW, HDG, HDM, HDT, DBT, DPT, APB, VLW, MWV, WPL, RTE, DSC and ZDA. Selectable to 4800, 4800 Navtex, 9600 Navtex or 38,400 AIS
  • MEA 0183 Output messages - user selectable: APB, BWC, BWR, DBT, DPT, GGA, GLL, MTW, RMA, RMB, RMC, RSD, TTM, VLW, VHW, VTG, WPL, VHF/DSC and ZDA
  • SeaTalkNG/NMEA 2000: 1 SeaTalkng connector. SeaTalkng to NMEA2000 adapter available

NAVTEX

  • Alerts: Incoming message (selectable categories)
  • Message list: Sorting
