Raymarine c127 Multifunction Display with Built-in Fishfinder (No Charts) - E70014

  • Raymarine c127 12.5" Network Multifunction Display Fishfinder
  • Raymarine c127 Plotter 12.5" Network Multifunction Display with Fishfinder
  • Raymarine c125 Plotter12.5" Multifunction Display
  • Raymarine c127 12.5" MDF Chartplotter with Built-in Fishfinder
  • Raymarine c127 Network Chartplotter with Fishfinder features
  • Raymarine c127 12.5" MDF viewable in tablets and smartphones
4.96 KGS
Usually ships within 24 hours.
$37.00 (Fixed shipping cost)

Product Description


Brand New

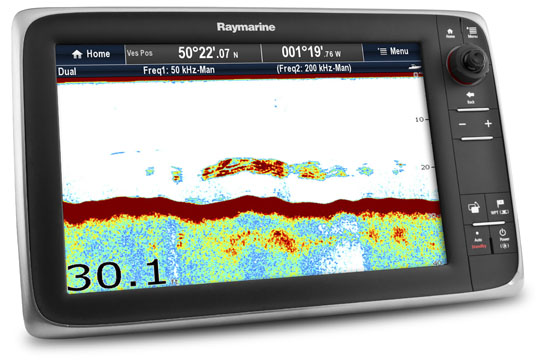

Raymarine c127 Chartplotter

with Built-in Fishfinder

All New c-Series Multifunction Displays

(no charts - E70014)



Raymarine c-Series c127 multifunction display has a built in HD Sounder that makes it the last word in the MFD (multifunction displays) with built-in Fishfinder market. 12.5" sunlight viewable LCD display, Wi-Fi and Bluetooth networking that provide control functions from your smartphone or tablet to the c127 chartplotter.

The Raymarine C127 Chartplotter 12" display is 16x9 Widescreen with 1280x800 (WVGA) resolution. The LCD display is viewable in direct sunlight and has wide viewing angles of 60-80 degrees. The LED Backlighting provides energy saving of 40%.

Anglers and fishermen that look for the ideal fishfinder should use the Raymarine c127 MDF. With its built-in HD Digital Sounder that supports ClearPulse Digital sonar technology the capabilities of the c127 fishfinder is way ahead its fellow devices. Connecting the "CP450C Clear Pulse 450 Chirp" (not included) to the c127 MDF will provide superior features like automatic adjust for clear image of fish and bottom contours up to 3000 feet, revealing more fish, elimination of surface clutter and water column noise and more.

The c-Series c127 MFD has a high sensitivity based WAAS/EGNOS built-in GPS receiver that provides accuracy of 5m at 95% of the time. .Add more Navionics maps using the dual Micro SD slots up to 32GB for better navigating.

The c127 MFD has advanced networking capabilities consisting on a built-in Wi-Fi and Bluetooth Wireless. This feature allows you to view in parallel the c127 chatplotter screen on your iPhone, Ipad or Android tablets and Smart phones by streaming the video to them. The c127 can also control music playback from your MP3 player or from your smartphone using Bluetooth control right from the MFD. All you need to do is download the free application from Apple iTunes to use these features.


The c127 also supports wired networking including SeaTalkhs, SeaTalkng, NMEA2000, NMEA 0183 and has one composite video input.

It is possible to network up to 6 displays together and match them with other Raymarine devices like AIS transceivers, marine and thermal imaging cameras, SIRIUS weather receivers (only USA), HD Color radar scanners and more.

Using the RCU-3 Bluetooth Remote Controller (sold separately) provides control capabilities of your c127 Multifunction Display right from the helm.

The Raymarine c127 includes a rubberized protective sun cover, flush mounting kit, power/data/video cable, installation guide and a multi-language handbook on CD-ROM.




 Back to Top

Raymarine c127 MDF Fishfinder Features (E70014):

  • 12.5” sunlight viewable LED backlighting LCD display.
  • Built-in HD Digital Sounder supporting ClearPulse Digital sonar technology.
  • Built-in high-sensitivity GPS receiver.
  • Dual Micro SD slots for added Navionics charts on microSD card.
  • Wi-Fi video streaming and waypoint synchronization with iPhone and iPad or Android Tablets and Smartphones.
  • Bluetooth connectivity for optional RCU-3 remote control and multimedia control.
  • Network up to 6 displays using SeaTalkhs technology.
  • Mix and match any combination of C-Series or E-Series displays.
  • Composite video input for entertainment source, marine camera or thermal imager.
  • Works with Raymarine digital radar scanners, thermal night vision systems, SIRIUS weather receivers, AIS receivers, instruments, autopilots and more.
  • Dual core main processor and dedicated graphics co-processor for amazing speed and performance.
  • Fast and easy control using LightHouse User Interface keypad.
  • IPX6 Waterproof.

Back to Top

Raymarine c127 Multifunction Dispaly Specifications (E70014):

  Width 13.9 inches (354mm)
  Height 8.7 inches (221mm) Not including mounting bracket
Electronic Charts
  Chart card slots 2
  Chart card format micro-SD
  Compatible Charts Navionics Ready-to-Navigate Silver, Gold, Gold+, Platinum, Platinum+, Fish 'N Chip, Hotmaps
  NMEA NMEA2000 certification
  Wireless WiFi Alliance certification
  Europe 2004/108/EC
  Australia and New Zealand C-Tick, Compliance Level 2
  Depth 2.56 inches (65mm) Not including cables
  Depth 5.90 inches (150mm) Including cables
  Weight 10.9 pounds (4.955 kg)
  Nominal Supply Voltage 12/24 V dc
  Operating Voltage Range 10.8 to 31.2 V dc
  Fuse/Breakers 7A. Standard 20mm glass fuse. In-line fuse fitted within power cable.
  Consumption 16 W At full display brightness
  LEN 1 Refer to SeaTalk NG Reference Manual
  Flush mounting hardware Included
  Trunion mounting bracket Optional R70002 Trunion Kit, sold seperately
  Operating temperature -25 ºC to +55 ºC (-13 ºF to 131 ºF)
  Storage temperature -30 ºC to +70 ºC (-22 ºF to 158 ºF)
  Relative humidity Maximum 75%
  Waterproof rating IPX6
  Size 12.1-inches (diagonally)
  Aspect ration 16 x 9 Widescreen
  Type TFT with LED Backlighting
  Color depth 18-bit
Internal Sonar
  Power Output 600 Watts (RMS) Transducer dependent
  Operating Frequencies 50 kHz, 200 kHz, 83 kHz 83 kHz when used with Minn Kota US2 Transducer
  Depth Range Up to 3,000 feet Transducer dependent
  Resolution 1280 x 800 pixels (WVGA)
  Brightness Ultra-sunlight viewable
  Viewing angle Left/Right: 80/60 degrees, Top/Bottom: 70 degrees
Data (Wired)
  NMEA0183 2 Ports
  NMEA0183 Port 1 Input only 4800 / 9600 / 38400 baud
  NMEA0183 Port 2 Input and output 4800 / 9600 baud
  SeaTalk HS 1 x SeaTalk HS port 100 Mbits/s. Micronet connection.
  SeaTalk NG 1 X SeaTalk NG connection Adaptable to NMEA2000 Devicenet.
Data (Wireless)
  WiFi 802.11 b/g
  Bluetooth AVCRP 2.1+ EDR power class 1.5
Internal GPS
  Included Yes
  Satellite Based Aiding System (SBAS) WAAS + EGNOS
  Operating Frequency 1575.43 MHz
  Signal Acquisition Automatic
  Almanac Update Automatic
  Geodetic Datum WGS-84 Alternatives selectable through e7 interface
  Update rate 1 second
  Antenna Patch
  Accuracy Without SBAS
  Accuracy With SBAS (WAAS /EGNOS)
Video Input
  Number of inputs 1
  Signal type Composite
  Format PAL, NTSC or SECAM
  Connector type BNC
Memory Capacity
  Waypoints 3000 Waypoints 100 Waypoint groups
  Routes 150 Routes 50 Waypoints max. per Route
  Tracks 15 Tracks Up to 10,000 points per track.
