Raymarine c95 Multifunction Display No Cartography- E70011

  • Raymarine c95 9" Multifunction Display
  • Raymarine c95 9" MDF Chartplotter
  • Raymarine c95 Plotter 9" Multifunction Display
RRP:
$2,799.00
Your Price:
$1,929.00 (You save $870.00)
SKU:
E70011
Brand:
Condition:
New
Weight:
2.17 KGS
Rating:
Availability:
Usually ships within 24 hours.
Shipping:
$37.00 (Fixed shipping cost)
Quantity:


Product Description



Brand New

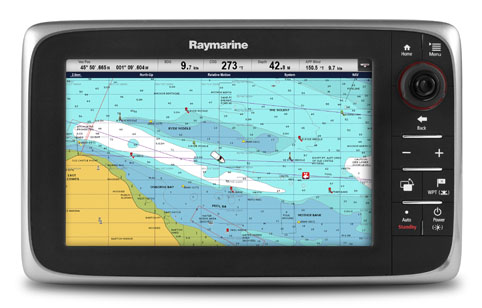

Raymarine c95 Chartplotter

All New c-Series Multifunction Displays

(no charts - E70011)




Raymarine c-Series c95 multifunction display is the last word in the MFD (multifunction displays) market. A 9" sunlight viewable LCD display, Wi-Fi and Bluetooth networking that provide control functions from your smartphone or tablet to the c95 chartplotter.

The Raymarine c95 chartplotter is perfect for all types of sail and power boats featuring a bright power saving LED backlighting LCD screen that is viewable in direct sunlight, incredible networking capabilities and excellent powerful user experience.

The c-Series c95 MFD has a high sensitivity built-in GPS receiver and includes two Micro SD slots for added Navionics maps.

The c95 Multifunction display has advanced networking capabilities consisting on a built-in Wi-Fi and Bluetooth Wireless. This feature allows you to view the c95 chatplotter screens on your iPhone, Ipad or Android tablets and Smart phones by streaming the video to them. The c95 can also control music playback from your MP3 player or from your smartphone using Bluetooth control right from the MFD.

The c95 also supports wired networking including SeaTalkhs, SeaTalkng, NMEA2000, NMEA 0183 and has one composite video input.

It is possible to network up to 6 displays together and match them with other Raymarine devices like AIS transceivers, marine and thermal imaging cameras, SIRIUS weather receivers (only USA), HD Color radar scanners and more.

Using the RCU-3 Bluetooth Remote Controller (sold separately) is providing control capabilities of your c95 display right from the.

The Raymarine c95 includes a rubberized protective sun cover, flush mounting kit, power/data/video cable, installation guide and a multi-language handbook on CD-ROM.









Back to Top

Raymarine c95 Chartplotter Features (E70011):

  • Built-in high-sensitivity GPS receiver.
  • 9.0” sunlight viewable LED backlighting LCD display.
  • Dual Micro SD slots for added Navionics charts on microSD card.
  • Wi-Fi video streaming and waypoint synchronization with iPhone and iPad or Android Tablets and Smartphones.
  • Bluetooth connectivity for optional RCU-3 remote control and multimedia control.
  • Network up to 6 displays using SeaTalkhs technology.
  • Mix and match any combination of C-Series or E-Series displays.
  • Composite video input for entertainment source, marine camera or thermal imager.
  • Works with Raymarine digital radar scanners, thermal night vision systems, SIRIUS weather receivers, AIS receivers, instruments, autopilots and more
  • Dual core main processor and dedicated graphics co-processor for amazing speed and performance.
  • Fast and easy control using LightHouse User Interface keypad.

Back to Top


Raymarine c95 Multifunction Dispaly Specifications (E70011):

Physical
  Width 11.4 inches (290mm)
  Height 6.8 inches (173mm) Not including mounting bracket
Electronic Charts
  Chart card format micro-SD
  Compatible Charts Navionics Ready-to-Navigate Silver, Gold, Gold+, Platinum, Platinum+, Fish 'N Chip, Hotmaps
Conformance
  NMEA NMEA2000 certification
  Wireless WiFi Alliance certification
  Europe 2004/108/EC
  Australia and New Zealand C-Tick, Compliance Level 2
Physical
  Depth 2.56 inches (65mm) Not including cables
  Depth 5.90 inches (150mm) Including cables
  Weight 7.8 pounds (3.540 kg)
Power
  Nominal Supply Voltage 12/24 V dc
  Operating Voltage Range 10.8 to 31.2 V dc
  Fuse/Breakers 7A. Standard 20mm glass fuse. In-line fuse fitted within power cable.
  Consumption 16 W At full display brightness
  LEN 1 Refer to SeaTalk NG Reference Manual
Installation
  Flush mounting hardware Included
  Trunion mounting bracket Optional R70001 Trunion Kit, sold seperately
Environmental
  Operating temperature -25 ºC to +55 ºC (-13 ºF to 131 ºF)
  Storage temperature -30 ºC to +70 ºC (-22 ºF to 158 ºF)
  Relative humidity Maximum 75%
  Waterproof rating IPX6
Display
  Size 9-inches (diagonally)
  Aspect ration 16 x 9 Widescreen
  Type TFT with LED Backlighting
  Color depth 18-bit
  Resolution 800 x 480 pixels (WVGA)
  Brightness Ultra-sunlight viewable
  Viewing angle Left/Right: 80/60 degrees, Top/Bottom: 70 degrees
Data (Wired)
  NMEA0183 2 Ports
  NMEA0183 Port 1 Input only 4800 / 9600 / 38400 baud
  NMEA0183 Port 2 Input and output 4800 / 9600 baud
  SeaTalk HS 1 x SeaTalk HS port 100 Mbits/s. Micronet connection.
  SeaTalk NG 1 X SeaTalk NG connection Adaptable to NMEA2000 Devicenet.
Data (Wireless)
  WiFi 802.11 b/g
  Bluetooth AVCRP 2.1+ EDR power class 1.5
Internal GPS
  Included Yes
  Satellite Based Aiding System (SBAS) WAAS + EGNOS
  Operating Frequency 1575.43 MHz
  Signal Acquisition Automatic
  Almanac Update Automatic
  Geodetic Datum WGS-84 Alternatives selectable through e7 interface
  Update rate 1 second
  Antenna Patch
  Accuracy Without SBAS
  Accuracy With SBAS (WAAS /EGNOS)
Video Input
  Number of inputs 1
  Signal type Composite
  Format PAL, NTSC or SECAM
  Connector type BNC
Electronic Charts
  Chart card slots 2
Memory Capacity
  Waypoints 3000 Waypoints 100 Waypoint Groups
  Routes 150 Routes Up to 50 waypoints max per route
  Tracks 15 Tracks Up to 10,000 points per track.
