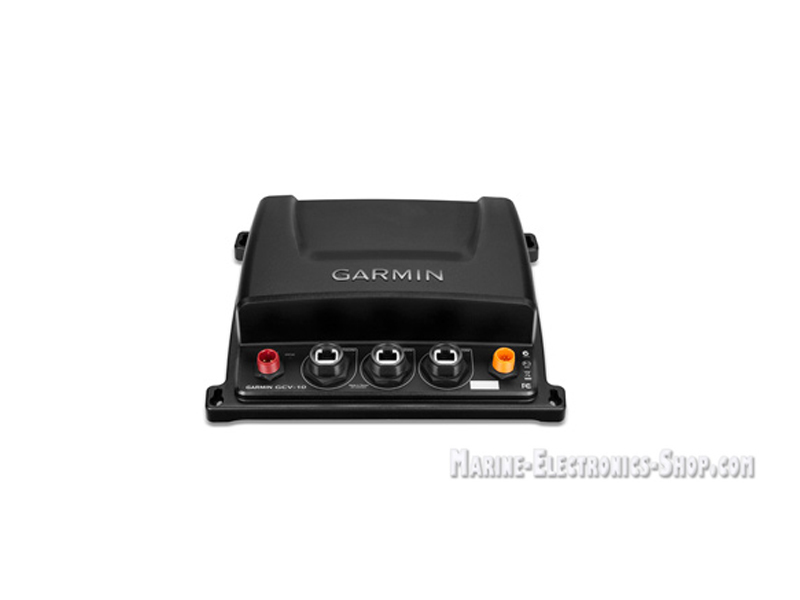

Garmin GCV 10 Scanning Sonar Modul (010-01156-10)

  • Marine Electronics Garmin GCV 10 Scanning Sonar Modul (010-01156-10)
  • Marine Electronics Garmin GCV 10 Scanning Sonar Modul Side
  • Marine Electronics Garmin GCV 10 Scanning Sonar Modul (010-01156-10) Side
  • Marine Electronics Garmin GCV 10 Scanning Sonar Modul Top
RRP:
$399.90
Your Price:
$379.90 (You save $20.00)
SKU:
010-01156-10
Brand:
Condition:
New
Weight:
0.90 KGS
Availability:
Usually ships within 24 hours.
Shipping:
$19.00 (Fixed shipping cost)

Sorry but this item is currently unavailable.

Please check back at a later stage.



Product Description



Brand New

Garmin GCV 10

Scanning Sonar Modul

without Tranduser

(010-01156-10)



Marine Electronics Garmin GCV 10 Scanning Sonar Module



Garmin GCV 10 Scanning Sonar Modul is a great addon to your fishfinder. When GCV 10 is used in conjunction with sonar HD-ID ™ you get a great tool for searching and identifying fish underwater topography for a great fishing in both fresh and salt water.

In the box - Garmin GCV 10 Scanning Sonar Modul 010-01156-10 :



  • GCV 10
  • Right-angle power cable (6 ft)
  • Right-angle network cable (6 ft)
  • Right-angle transducer adapter cable
  • Transom transducer mount
  • Mounting hardware
  • Documentation





Description - Garmin GCV 10 Scanning Sonar Modul 010-01156-10

Garmin GCV 10 Scanning Sonar Modul allows you to add features of side and bottom review SideVü review DownVü, operating on frequency modulation technology CHIRP to your device Garmin echoMAP series or GPSMAP (see the list of compatible devices.). CHIRP technology performs frequencie modulation, in the selected range, in order to produce photorealistic images of underwater objects and the bottom relief under the boat (DownVü) and on the sides of the vessel (SideVü).



 Marine Electronics Garmin GCV 10 Scanning Sonar Module  Marine Electronics Garmin GCV 10 Scanning Sonar Module
 Marine Electronics Garmin GCV 10 Scanning Sonar Module  Marine Electronics Garmin GCV 10 Scanning Sonar Module









 Back to Top

Features and benefits of Garmin GCV 10 Scanning Sonar Modul 010-01156-10

Compatible devices

  • Garmin echoMAP 70dv
  • Garmin GPSMAP 1022xsv
  • Garmin GPSMAP 1222xcv
  • Garmin GPSMAP 751xc
  • Garmin GPSMAP 752xc
  • Garmin GPSMAP 8008MFD
  • Garmin GPSMAP 8015MFD
  • Garmin GPSMAP 8500 Black Box
  • Garmin GPSMAP 8530 Black Box
  • Garmin GPSMAP 952xs

Features

  •  Use with compatible echoMAP ™ and GPSMAP® series devices
  • Provides DownVü ™ and SideVü ™ modes scanning sonar technology CHIRP for high-frequency and ultra-clear images of underwater objects and fish
  • Includes 12-pin transducer DownVü / SideVü with non-inertial temperature sensor
  • 3 LAN ports to connect multiple devices to the network

ClearVü

Garmin GCV 10 Scanning Sonar Modul provides you a nearly photographic sonar view of structure and fish that pass below your boat (ClearVü). You can view ClearVü scanning images in conjunction with SideVü and your HD-ID sonar, or CHIRP sonar images on the same screen.

SideVü

GCV 10 is an excellent tool for scoping out a fishing area quickly. SideVü mode provides a wide view of what lies off to either side of your boat. You see a crystal clear image that makes it easy to identify wrecks, structure, rocks and, yes, even the fish that are lurking next to them. With Garmin GCV 10 Scanning Sonar Modul you can view SideVü scanning images in conjunction with ClearVü and your HD-ID sonar, or CHIRP sonar images on the same screen.

Multiple Options

Garmin GCV 10 Scanning Sonar Modul is sold with and without a transducer. The version with a transducer includes 12-pin ClearVü/SideVü transom mount transducer with fast response temperature sensor.



Back to Top

Specifications - Garmin Fishfinder 350C 010-01044-01 :



Physical & Performance

Physical dimensions 9.9"×7.6"×2.6" (251 mm × 192 mm × 66 mm)
Weight 1.86 lbs (845 g)
Water rating IPX7
Temperature range From 5°F to 158°F (from -15°C to 70°C)
Compass-safe distance 10.2 in. (26 cm)
Garmin Marine Network™ ports

3




Sonar Features & Specifications

Frequencies supported 455/800 kHz (dependent on transducer)
Transmit power 500 W rms
ClearVü

Yes

SideVü

Yes

Maximum depth ClearVü: 750 ft (229 m); SideVü: 500 ft (153 m)

Electrical

Power input 10-35 V
Power usage 10.5 W maximum
Fuse 4.0 A

  • Unit dimensions, LxWxH: 251 mm × 192 mm × 66 mm
  • Weight: 845 g
  • Waterproof: yes (IPX7)
  • Temperature range: From 5°F to 158°F (from -15°C to 70°C)
  • Power Input: 10-35 V
  • Power Usage: 10.5 W maximum
  • Fuse: 4.0 A
  • Compass safe distance: 26 cm
  • Sounder power: 500 W rms¹
  • Frequency: 455/800 kHz (dependent on transducer)
  • Depth: ClearVü: 750 ft (229 m); SideVü: 500 ft (153 m)²
  • Data output: Garmin Marine Network

¹dependent on transducer rating and depth

²maximum depth, dependent on transducer, water salinity, bottom type and other water conditions






























Warranty Information

1 Year Warranty
