Raymarine AIS250 Reciver Module

  • Raymarine AIS250 Reciver Module
  • Raymarine AIS250 Reciver Back View
Your Price:
$649.00 (You save $70.00)
0.54 KGS
Free Shipping

Product Description

Brand New In Box

Raymarine AIS250

  Reciver Module

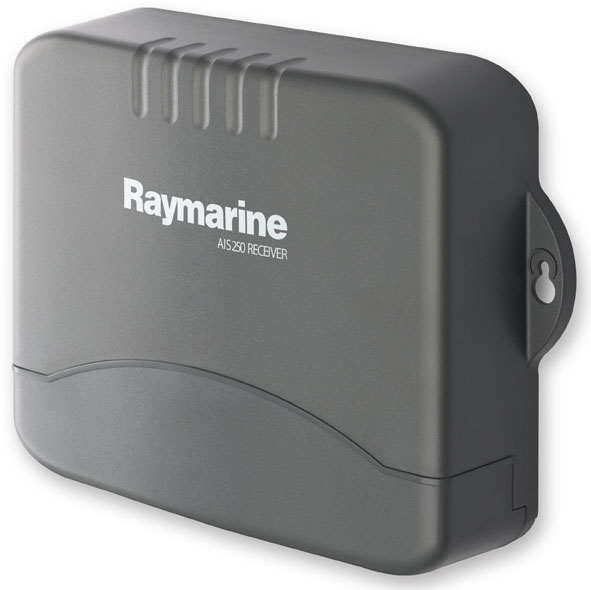

Raymarine AIS 250 Reciver Module front view


The Raymarine AIS250 Receiver Module connects to your existing VHF antenna using its built-in VHF splitter. The AIS250 is a “listen only” AIS (Automatic Identification System) Receiver Module. Featuring NMEA multiplexer it enables receiving both AIS data and another NMEA 0183 source through a one single port.

By connecting the AIS250 Receiver Module to any of Raymarine A/C/E/G Series Multifunction Displays you will be able to exchange wireless data with an on-shore traffic monitoring centers as well as graphically view other vessels navigation data both in Radar and Chartplotter modes.

The AIS250 Receiver is able to monitor class A and class B AIS broadcasts. All type of sea vessels that broadcast AIS messages containing vessel's name, it's speed, course, and navigation status are shown on the screen reconciled with other radar targets for added safety.

With regard to the NMEA 0183 input and output ports of the Raymarine AIS250, one of each is provided at 38,400 and 4,800 BPS. Additional technical requirements and specifications are listed below.

AIS250 Reciver System Requirements

  • VHF Antenna
  • Chartplotter, Multifunction display or PC application with NMEA 0183 input and AIS compatibility

Compatible Raymarine Multifunction Displays

  • A-Series : A50, A50D, A57, A57D, A70, A70D
  • C-Series    Classic : C70, C80, C120
  • C-Series Widescreen : C90W, C120W, C140W
  • E-Series : E90W, E120W, E140W
  • G-Series

Graphical View of AIS Targets

Raymarine AIS250 Reciver Module Specifications:

  AIS Data Rate 9600 BpS
  AIS Receiver Type Dual Channel (multiplexed)
  Antenna Impedance 50 Ohm
  Channel Spacing 25 kHz
  Data Format NMEA 0183
  Dimensions 6.69”H x 9.33”W x 2.16”D (170 mm × 237 mm x 55mm)
  NMEA 0183 Baud Rate 38,400/4800 Baud
  NMEA 0183 Sentence VDM
  Operating Frequencies 161.975 and 162.025 MHz (multiplexed)
  Operating Temperature 14° to 131° F (-10° to 55° C)
  Power DC 10.8~32V @
  Storage Temperature -4 to 167° F (-20° to 75° C)
  Warranty 2 years parts, 2 year labor
  Weight 1.2 lbs (.54Kg)

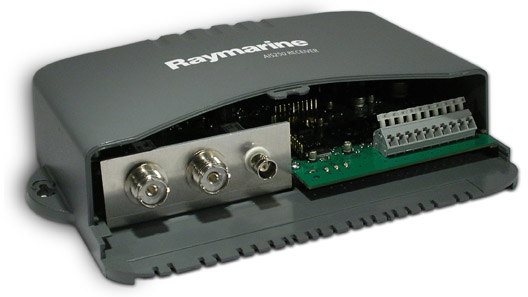

Raymarine AIS250 Connectors



Raymarine AIS250 System Configuration

 Raymarine AIS250 Reciver System Configuration



Raymarine AIS250 Reciver Module - Actual Sizes

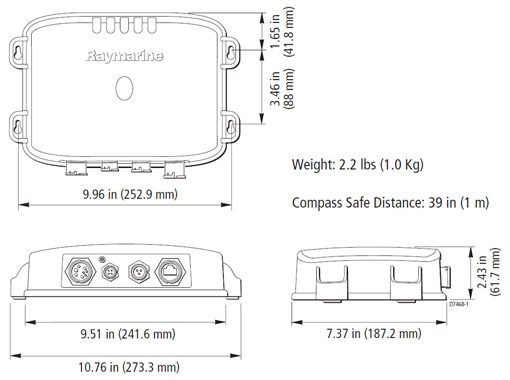

Raymarine DSM300 Sounder Sizes


Warranty Information

2 Years Raymarine Worldwide Warranty

Worldwide Free Shipping
365 days Return Policy
