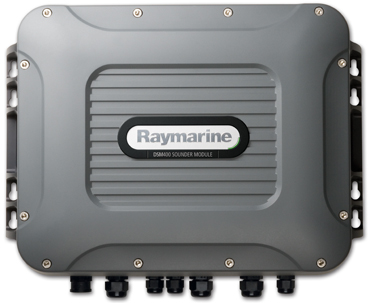

Raymarine DSM400 Digital Sounder Module

  • Raymarine DSM400 Digital Sounder Module side view
  • Raymarine DSM400 Digital Sounder Module Connectors
  • Raymarine DSM400 Digital Sounder Module side view 2
  • Raymarine DSM400 Digital Sounder Module up
12.50 KGS
Free Shipping

Product Description

Brand New In Box

Raymarine DSM400

Digital Sounder Module


Raymarine DSM400 Digital Sounder Module


In the artillery of veteran and expert anglers, one weapon remains supreme, and that’s the new Raymarine DSM400 Sounder Module. It has been designed to provide fishing enthusiasts with unparalleled power and total performance for hunting down their aquatic targets.

Raymarine DSM400 Sounder Module is a High Performance 3kW Digital Sounder with 4 independent HD Digital transceivers suitable for G-Series multifunction displays.

The DSM400 takes Raymarine's patented system for HD digital technology to unprecedented heights, with the device equipped with four separate digital sonar transceivers. The device is also capable of transmitting in a range of 1 - 3KW, affording fishermen the choice that not all other similar devices are capable of providing. More importantly, the product goes as far as offering simultaneous support for multiple operations (28kHz, 38kHz, 50kHz, and 200kHz).

Another impressive feature that comes with the newest offering from Raymarine is its total hands-free operation. This, once again, can be credited to the adaptive capabilities of HD digital technology, which allows the DSM400 Sounder to automatically modify sonar parameters based on configured factors such as altering sea conditions, transmit power, ping rate, and sensitivity.

Last but not the least, the DSM400 Sounder also enables its users to identify their aquatic targets at a glance, determining habitat and individual species, which consequently lets them distinguish ideal targets from bait fish. In relation to that, when the device is used with a G-Series Display, anglers would also be able to receive bottom structure as well as additional target information that’s relayed on a 1280 x 1024 pixels screen.

A wide range of professional transducers, external mount as well as in-hull, are available to increase the performance of the DSM400 Sounder. Optional speed and temperature sensors are also available.

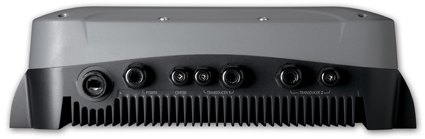

 Raymarine DSM400 Connectors


Raymarine DSM400 Features:

DSM400: High Power HD Digital

  • Designed for the serious sport fisherman.
  • 3 kilowatts of depth penetrating power.
  • 4 independent sonar transceivers with HD Digital technology.
  • 28, 38, 50 and 200 kHz operation.
  • Patented HD Digital signal processing technology
  • Support native display resolutions up to 1280 x 1024 pixels.
  • SeaTalkhs Network compatible for G-Series & E-Series (coming soon.)
  • Engineered for extreme duty with a rugged aluminum chassis
  • Compatible with a wide range for professional grade transducers for maximum performance.
  • Optional speed and temperature sensors sold separately.


Raymarine DSM400 Digital Sounder Module Specifications:

  Waterproof IPX7
  Humidity up to 95% at 35°C non-condensing
  Storage Temperature –20°C to +70°C
  Operating Temperature –10°C to +50°C
  Connectors 7 Connectors Depth transducer (x2), Depth transducer ID (x2), Speed/temp transducer, Power, RJ-45 SeaTalk HS
  Weight 27 lbs (12.25 kg)
  Dimensions (WxHxD) mm 416x125x307
  Mounting 8 keyholed mounting tabs Mount below deck but NOT in engine compartment.
Sonar Specifications
  Power Output 1,2,3 kW Transducer dependent. 200 kHz output transducer-limited to 2kW.
Power Requirements
  Power Consumption TBA
Sonar Specifications
  Frequency 28, 38, 50, 200 kHz Broadband
  Receiver Type Patented HD Digital receiver
  Pulse Length 100 µsec to 4 msec
  Number of Transceivers 4 independent transceivers
  Max. transmit rate 1580 pulses/min @ 15m (50') range
  Range scales 36 scales (2 to 3km using 28/38kHz transducer at 3kW)
  Range control auto/manual/range with shift, dual range
  Zoom size auto/manual x2, x3, x4, xR (user selectable)
Power Requirements
  Voltage 10.7–32 VDC (for 12 or 24 VDC systems)
  Network SeaTalk HS

Warranty Information

2 Years Raymarine Worldwide Warranty

Worldwide Free Shipping
365 days Return Policy
