Raymarine ST40 Depth ThruHull transducer system E22044

  • Image 1
  • Image 2
Price:
$328.00
SKU:
E22044
Brand:
Condition:
New
Weight:
1.50 KGS
Shipping:
Free Shipping
Quantity:


Product Description

Brand New

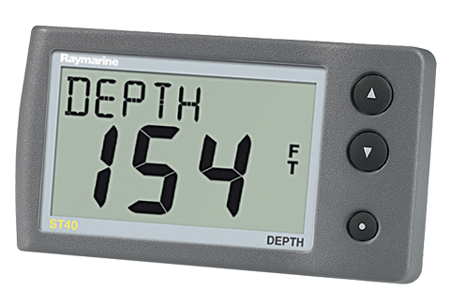

Raymarine ST40 Depth ThruHull System

ST40 Display with ThruHull Transducer Included



Raymarine ST40 Depth ThruHull Transducer system is perfectly used for inboard Power Boats and sailing vessels.

This ST40 Depth ThruHull system is for inboard installing and comes with a ThruHull transducer that is included. It could be installed as a master display or as a repeater for displaying depth at multiple locations. The ST40 Depth ThruHull  is SeaTalk compatible and integrates with Raymarine autopilots, Raymarine Chartplotters (multifunction displays) and other navigation equipment.

The ST40 Depth ThruHull  has big high contrast LCD display with extra-large 7 segment 28mm sized digits for excellent visibilityin all lighting conditions and 3 levels of display-backlighting for night use. Depth display units can be chosen between feet (FT), meters (M) or fathoms (FA).

Minimum depth is recorded during the period the Raymarine ST40 Depth is switched on and can be reset at any time. Alarms can be defined for shallow water, deep water, shallow anchor and deep anchor. A keel or waterline offsets could be set according to your boat's characteristics and be displayed at any time.

You could choose your mounting hardware's color (bezels, surface and bracket) between 3 finishes (Carbon fiber, Silver, Grey).

The ST40 Depth ThruHull System includes ST40 Depth Display, ThruHull transducer, SeaTalk cable, mounting hardware, suncover and instructions.

ST40 Depth ThruHull Transducer




Raymarine ST40 Depth ThruHull System Features:

  • SeaTalk compatible for networking to other instruments, multifunction displays and autopilots
  • high contrast LCD display for excellent visibility
  • 3 levels of display backlighting for night use
  • 28mm tall, 7-segment digits for visibility across the cockpit
  • 200 Khz frequency
  • shallow, deep and anchor alarms
  • feet, fathoms or meters display
  • keel or waterline offsets tailor ST40 depth to your boat's characteristics
  • master or repeater mode for displaying depth at multiple locations

Raymarine ST40 Depth ThruHull System Specifications:

General
  Supply voltage: 10 V to 16 V dc.
  Current consumption (12 V supply): 30 mA typical. 70 mA with maximum backlighting.
  Operating temperature: 0°C to +70°C.
  Interfaces: SeaTalk.
  Overall dimensions: 126 mm x 70 mm x 38 mm (5.00 inches x 2.80 inches x 1.55 inches).
  Boss diameter: 55 mm (2.20 inches).
  Depth range: 0 to 400 feet.
  Shallow depth alarm: 0 to 29 feet.
  Deep depth alarm: 30 to 400 feet.
  Shallow anchor alarm: 1 to 250 feet.
  Deep anchor alarm: 10 to 400 feet.
Approvals:
  CE - conforms to 89/336/EC(EMC), EN60945. 94/25/EC(RCD), EN28846 (applies to transducer only).
