Raymarine ST40 Depth Transom mount transducer system E22053

  • Image 1
  • Image 2
1.50 KGS
Free Shipping

Product Description

Brand New

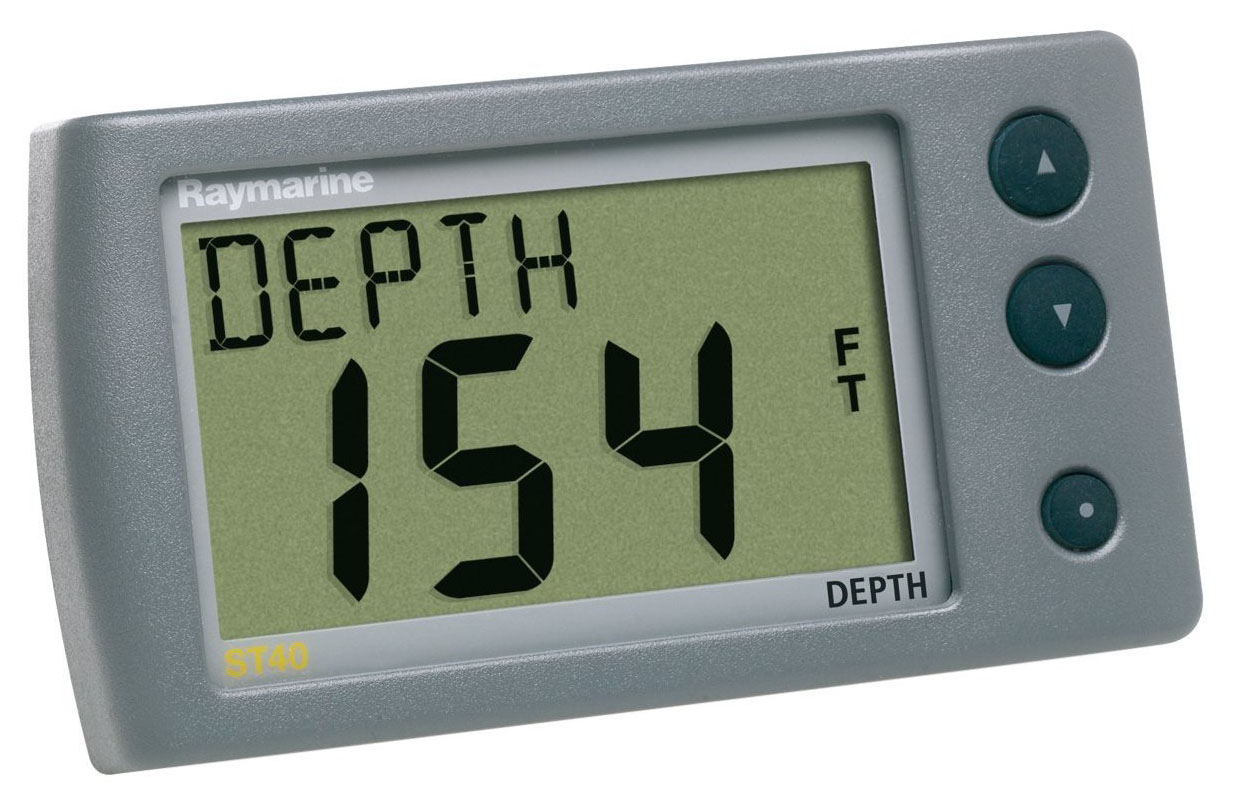

Raymarine ST40 Depth Transom System

ST40 Display with Transom mount Transducer Included


Raymarine ST40 Depth Transom system is perfect to use in small boats, yachts, RIBs or sterndrive equipped vessels when space is limited and  a compact in size and design yet powerful in performances display is needed.

This ST40 Depth transom system is for outboard mounting and comes with transom mount transducer that is included. It could be installed as a master display or as a repeater for displaying depth at multiple locations. The ST40 Depth Transom is SeaTalk compatible and integrates with Raymarine autopilots, Raymarine Chartplotters (multifunction displays) and other navigation equipment.

The ST40 Depth Transom has big high contrast LCD display with extra-large 7 segment 28mm sized digits for excellent visibilityin all lighting conditions and 3 levels of display-backlighting for night use. Depth display units can be chosen between feet (FT), meters (M) or fathoms (FA).

Minimum depth is recorded during the period the Raymarine ST40 Depth is switched on and can be reset at any time. Alarms can be defined for shallow water, deep water, shallow anchor and deep anchor. A keel or waterline offsets could be set according to your boat's characteristics and be displayed at any time.

You could choose your mounting hardware's color (bezels, surface and bracket) between 3 finishes (Carbon fiber, Silver, Grey).

The ST40 Depth Transom Mount System includes ST40 Depth Display, transom-mount depth transducer, SeaTalk cable, mounting hardware, suncover and instructions.

ST40 Depth Transom Transducer



Raymarine ST40 Depth Transom Mount System Features:


  • SeaTalk compatible for networking to other instruments, multifunction displays and autopilots
  • high contrast LCD display for excellent visibility
  • 3 levels of display backlighting for night use
  • 28mm tall, 7-segment digits for visibility across the cockpit
  • 200 Khz frequency
  • shallow, deep and anchor alarms
  • feet, fathoms or meters display
  • keel or waterline offsets tailor ST40 depth to your boat's characteristics
  • master or repeater mode for displaying depth at multiple locations

Raymarine ST40 Depth Transom Mount System Specifications:

  Supply voltage: 10 V to 16 V dc.
  Current consumption (12 V supply): 30 mA typical. 70 mA with maximum backlighting.
  Operating temperature: 0°C to +70°C.
  Interfaces: SeaTalk.
  Overall dimensions: 126 mm x 70 mm x 38 mm (5.00 inches x 2.80 inches x 1.55 inches).
  Boss diameter: 55 mm (2.20 inches).
  Depth range: 0 to 400 feet.
  Shallow depth alarm: 0 to 29 feet.
  Deep depth alarm: 30 to 400 feet.
  Shallow anchor alarm: 1 to 250 feet.
  Deep anchor alarm: 10 to 400 feet.
  CE - conforms to 89/336/EC(EMC), EN60945. 94/25/EC(RCD), EN28846 (applies to transducer only).
