Raymarine Ray55 VHF Marine Radio US Version - E43036

  • Image 1
  • Image 2
  • Image 3
Price:
$395.00
SKU:
E43036
Brand:
Condition:
New
Weight:
3.20 KGS
Shipping:
Free Shipping
Quantity:


Product Description

Brand New In Box

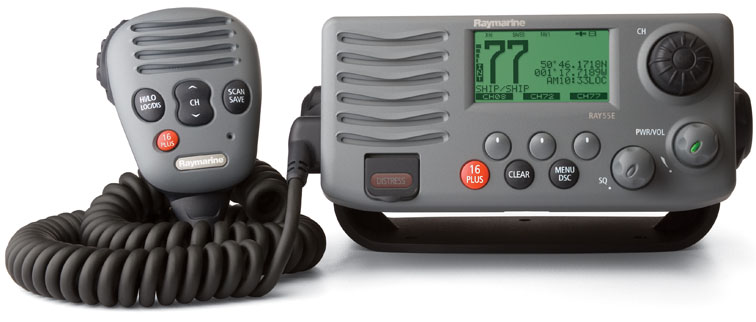

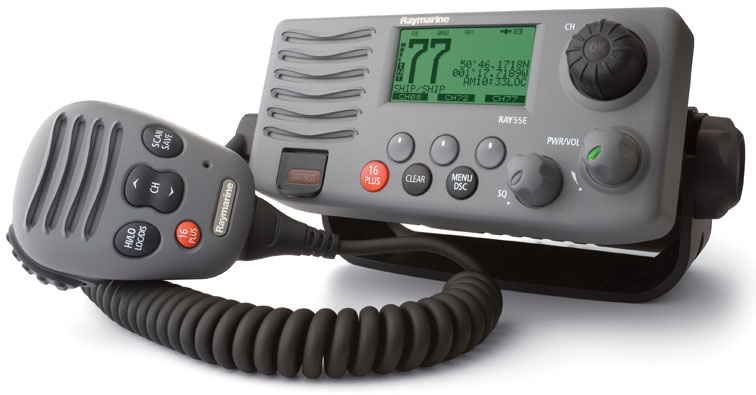

Raymarine Ray55 VHF Radio

US Marine Radio Version

(E43036)



Raymarine Ray55 VHF Radio is a waterproof (IPX7) fixed mount compact Radio with unmatched performance and style. This is a US Marine Radio Version.

The Raymarine Ray55 VHF radio packs a whole host of powerful features into a radio that is compact, rugged, IPX7 Panel submersible and reliable. With its 25 Watts transmitter power and the superior receiver with excellent noise rejection you will be heard and hear loud and clear.

Ray55 offers easy-to-use rotary controls for volume, squelch and menu operation combined with an extra large dot matrix LCD display with dual channel mode that displays both the active and standby channel simultaneously.  The standard microphone includes integrated controls for channel selection as well as a built-in speaker. A standard external speaker connection is also available.

Raymarine Ray55 features Class D digital select calling with a built-in 1 touch DSC distress button for digital broadcast of your boat’s GPS position and digital mayday. The DSC (Digital Sellective Calling) Button is protected by a spring loaded cover to prevent it from being accidentally pressed.

The Ray55 VHF Radion is also expandable to 2 stations using the optional Raymic Full Function Handset (sold separately). The Raymic enables intercom capabilities between Ray55 and Raymic at a remote station. Watch modes as well as programmable scanning are all included.

The Raymarine Ray55 VHF Radio kit includes radio, microphone, sun cover, yoke mounting bracket, power/speaker/data cable, mounting hardware and instructions.  An optional in-dash flush mounting kit is available separately.

 Raymarine Ray55 VHF Marine Radio - US Version  E43036




Raymarine Ray55 VHF Radio Features:

  • Class D DSC (Digital Selective Calling) transceiver
  • DSC Distress key transmits GPS position and a digital mayday
  • NOAA Weather Alert
  • NMEA 0183 input with GPS Position, COG and SOG display
  • Chartplotter position polling using NMEA 0183 output
  • Easy-to-use rotary controls for channel, volume, squelch and menu operation
  • Extra large dot matrix LCD
  • Speaker microphone with controls and remote mount option
  • Dual Channel Display (2UP Mode) displays active channel and stand by channel simultaneously
  • Programmable favorite channel soft keys (1UP Mode)
  • Quick Access 16/9 Key
  • 4 Scan Modes: All Scan, Saved (Memory) Scan, Priority All Scan and Priority Saved Scan
  • Submersible (IPX7 Standard)
  • Superior receiver with excellent intermodulation rejection
  • Rugged housing with a low profile bezel using the optional flush mount kit (order # A46053)
  • Optional Raymic remote station handset serves as full function second station
  • Raymic enables intercom capabilities between Ray55E and Raymic at a remote station



Raymarine Ray55 VHF Radio Specifications:

General
  Mounting Bracket or flush mount
  Power 12 VDC system (13.6 VDC, typical)
  Environmental: Operating Range, Storage Range, Humidity Waterproof to IPX7 –10°C to +50°C, –20°C to +70°C, up to 95%
  Frequency Range: Transmit: 156.050 to 162.425 MHz , Receive 156.050 to 163.275 MHz
  Hailer Output Power: 30 watts @ 4 ohms
  NMEA IN Sentences supported (NMEA 0183 ver 3.01): GLL, GGA, RMA, RMC, GNS
  NMEA OUT Sentences (NMEA 0183 ver 3.01): DSC, DSE
  Warranty 2 Year limited warranty
Transmitter
  RF Power (at 13.6 VDC): Hi Mode, Lo Mode 25 W, 1 W
  Maximum Deviation ± 5 KHz
  FM Hum and Noise Level less than -40 dB below audio level
  Adjacent Channel Power more than 70 dB
  Spurious/Harmonic Emissions less than -70 dBc
  Current Drain: Hi Power at 13.6V DC less than 6 A
Receiver
  Sensitivity @ 12db SINAD 0.28 µV, typical
  Hum and Noise less than -40 dB below audio level
  Audio Distortion less than 10%
  Adjacent Channel Rejection more than 80 dB, typical
  Intermodulation Rejection Ratio more than 80 dB, typical
  Spurious Image Rejection more than 80 dB, typical
  Squelch Sensitivity @ Tight - less than 1 µV, @ Threshold - less than 0.28 µV
General
  Confroms to: IEC62238, EN300-698-2/3, and essential requirements of R&TTE Directive 1999/5/EC.

Warranty Information

2 Years Raymarine Worldwide Warranty
