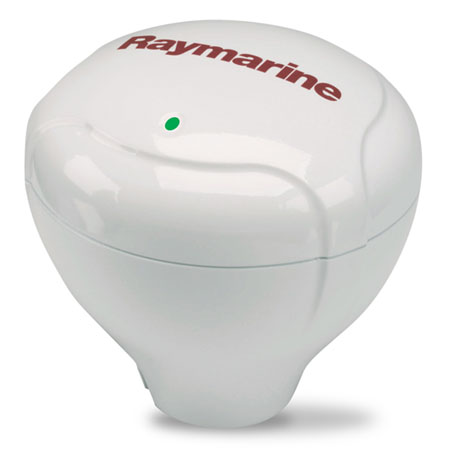

Raymarine RayStar 130 Marine GPS Receiver - RS130 Antenna

Raymarine RS130 (RayStar 130) Marine GPS Sensor
  • Raymarine RS130 (RayStar 130) Marine GPS Sensor
Pin It
RRP:
$445.00
Your Price:
$375.00 (You save $70.00)
SKU:
E32153
Brand:
Weight:
0.29 KGS
Availability:
Usually ships within 24 hours.
Shipping:
Free Shipping

Sorry but this item is currently unavailable.

Please check back at a later stage.


Product Description



Brand New

Raymarine RayStar 130

Marine GPS Reciver Antenna

(E32153)



The new Raystar 130 (RS130) of Raymarine's Raystar GPS receiver's line brings the best accuracy for your navigation. It looks the same but it is equipped with much better features.

The Raymarine RS130 sensor supports WAAS, EGNOS MSAS Satellite Differential decoding and with 48 GPS channels it presents accuracy of less than 3 meters. It also has a high resistance to all kind of signal interference.

Supporting the latest data networking protocols, NMEA200 and SeaTalkng,, the Raystar 130 is perfect for providing data to Raymarine multifunction displays (MDF), instrument systems or chartplotter as a primary GPS Receiver or as the backup Antenna.

The RS130 Installation is fast and easy. It can be mounted on any horizontal surface on your boat or you could attach it with the included adapter to any standard antenna pole or rail mount.



 Raymarine Raystar 130 (RS130) GPS Sensor Features:

  • Best accuracy of 48-channel GPS receiver for less than 3 meters.
  • Ultra compact all-in-one GPS receiver with Satellite Differential
  • SeaTalkng  and NMEA2000 network compatible.
  • Compatible with WAAS, EGNOS, GAGAN and MSAS
  • Flexible surface mount and pole mounting options
  • Very low power consumption (50 mW or less)
  • Removable interconnect cable facilitates easy installation.
  • Built-in LED diagnostic indicator.



Raymarine Raystar 130 (RS130) GPS Sensor Specifications:

Power
  Nominal voltage (volts DC) 12V, 24V systems
  Power consumption (typical) watts 50mW max.
Physical
  Overall dimensions (DxH) mm diameter 95x30
  Product weight kg (lbs) 0.13 (0.29)
  Mounting methods flush/pole/rail Pole mount thread: 1" x 14 TPI. This is the standard thread found on VHF radio antenna mounts and extenstion poles.
  Cable length 6 meters
Data Interfacing
  Protocols supported SeaTalkng • NMEA 2000 (certified) (via DeviceNet adaptor)
  LEN 1 Refer to SeaTalk NG Reference Manual for more information.
Approvals
  EMC Approved Europe: 2004/108/EC • Australia and New Zealand: C-Tick, Compliance Level 2
  CE Marked Yes
Environmental
  Operating temperature range -25 ºC to +55 ºC (-13 ºF to 131 ºF)
  Non-operating temperature range -25 ºC to +70 ºC (-13 ºF to 158 ºF)
  Humidity max 93%
  Waterproofing standard Waterproof to IPX6
GPS Features
  Type Active antenna
  Signal acquisition Multiple parallel channel receiver (C/A code)
  Satellite differential type WAAS/EGNOS/MSAS/GAGAN
  Differential acquisition automatic (satellite)
  Position accuracy (RMS)
  Position accuracy with SDGPS (RMS)
  Speed accuracy (RMS)
  Time to fi rst fi x from cold start (typical) < 2 minutes (< 45 seconds typical)
  Geodetic datum WGS84
  Sensitivity High sensitivity — acquisition down to -147 dBm

 Special Price for buying ST-STng Converter Kit plus RayStar 130 (RS130) GPS Sensor

Warranty Information

3 Full Years
