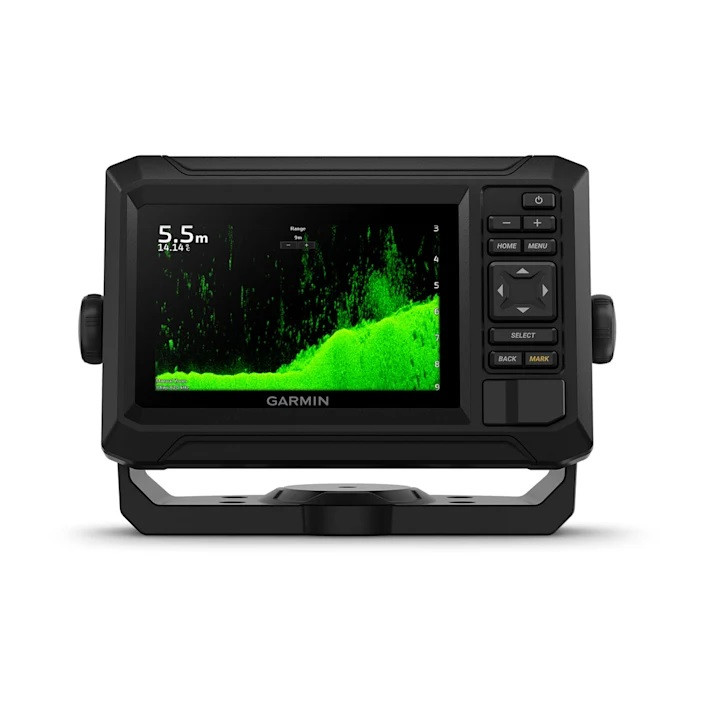

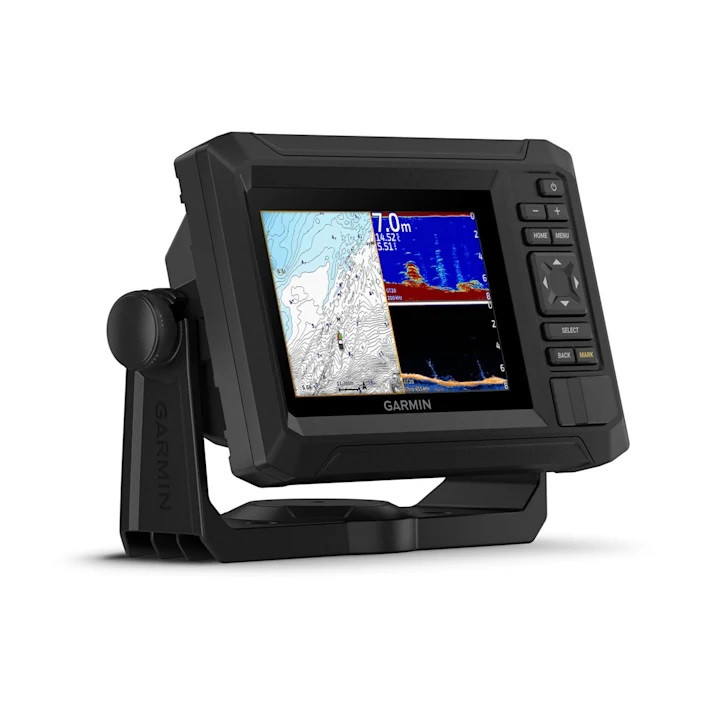

The Garmin ECHOMAP UHD2 52cv combines chartplotting and fishfinding capabilities in a compact 5-inch keyed display designed for anglers and boaters who need essential marine information in a space-conscious format. Supplied with the GT20-TM transducer, the system provides Traditional CHIRP sonar and Garmin ClearVü scanning sonar to help identify fish and understand underwater structure beneath the boat.

Garmin ECHOMAP UHD2 52cv - Description

The bright WVGA display presents navigation and sonar information in a clear, easy-to-read format, while the keyed interface provides straightforward control in demanding marine conditions. With a worldwide basemap, wireless connectivity, Quickdraw Contours support, and compatibility with the Garmin Marine Network ecosystem, the ECHOMAP UHD2 52cv provides a practical combination of navigation and fishing features for smaller vessels.

1. Compact 5-Inch Marine Display

The 5-inch WVGA display provides a practical balance between screen visibility and compact installation. Its keyed interface allows easy operation without relying entirely on touchscreen controls.

2. Traditional CHIRP Sonar

Traditional CHIRP sonar helps produce clear fish arches and detailed underwater information. It provides anglers with useful feedback for locating fish and understanding the water beneath the boat.

3. Garmin ClearVü Scanning Sonar

ClearVü scanning sonar provides a detailed view of underwater objects and structure below the vessel. This can help anglers identify submerged features and improve their understanding of the fishing environment.

4. GT20-TM Transducer Included

The included GT20-TM transducer provides the sonar capability required to use the unit's Traditional CHIRP and ClearVü functions. Its transom-mount design offers a practical installation option for compatible boats.

5. Worldwide Basemap

The ECHOMAP UHD2 52cv comes with a worldwide basemap for general navigation reference. Compatible chart options can provide additional detailed navigation information when required.

6. Wireless Connectivity

Built-in wireless connectivity allows the chartplotter to communicate with compatible devices and supports convenient access to selected Garmin features and services.

7. Quickdraw Contours Mapping

Compatible with Quickdraw Contours, the unit can create personalized fishing maps using sonar data. This allows users to build detailed depth contours of their favorite fishing locations.

Garmin ECHOMAP UHD2 52cv - Key Features

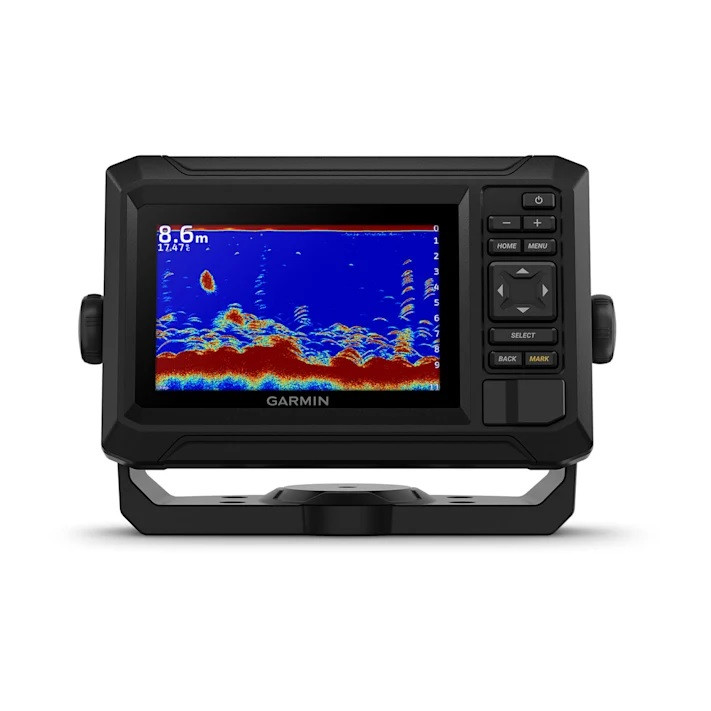

1. 5-Inch WVGA Display

The compact 5-inch color display provides an 800 × 480 pixel resolution for viewing navigation, sonar, and fishfinding information with clear on-screen detail.

2. Keyed User Interface

The physical keyed controls provide dependable operation while underway. This design is especially convenient when operating the unit in wet conditions or when wearing gloves.

3. Traditional CHIRP Sonar

Traditional CHIRP sonar helps display fish arches and provides useful information about objects beneath the vessel, making it easier to identify potential fishing locations.

4. Garmin ClearVü CHIRP

ClearVü CHIRP scanning sonar produces detailed images of underwater structure and fish below the boat, helping anglers better understand the underwater environment.

5. GT20-TM Transom-Mount Transducer

The included GT20-TM transducer provides Traditional CHIRP and ClearVü sonar capabilities in a convenient transom-mount configuration.

6. High-Definition Sonar Performance

The system delivers high-quality sonar imaging with up to 500 W RMS transmit power, depending on the transducer configuration and operating conditions.

7. Quickdraw Contours Support

Create personalized depth maps as you navigate and fish. Quickdraw Contours allows users to build custom contour maps based on collected sonar data.

8. Worldwide Basemap

The preloaded worldwide basemap provides general geographic and navigation reference information for use on the water.

9. IPX7 Water Rating

The chartplotter is designed with an IPX7 water rating, providing protection against incidental water exposure and temporary immersion under specified conditions.

10. Compact Installation Design

The compact chartplotter measures approximately 18.8 × 12.2 × 6.15 cm without the mount, making it suitable for helm stations where available installation space is limited.

What's in the Box

• ECHOMAP UHD2 52cv Chartplotter
• GT20-TM Transducer
• Power/Data Cable
• Tilt Mount
• Flush Mount
• Mounting Hardware
• Documentation
