Physical & Performance |
|
|
Physical dimensions |
5.7" x 5.0" x 2.7" (14.5 x 12.7 x 6.9 cm) |
|
Display size, WxH |
2.4" x 3.2"; 4.0" diagonal (6.1 x 8.1 cm; 10.2 cm diagonal) |
|
Display resolution, WxH |
240 x 320 pixels |
|
Display type |
QVGA display |
|
Weight |
1.3 lbs (590 g) |
|
Water rating |
IPX7 |
|
Receiver |
High sensitivity |
|
Antenna |
Internal with external connection |
|
Mounting options |
Bail with swivel or flush |
|
Power consumption |
Max power usage at 13.8 Vdc: 15 W Typical current draw at 12 Vdc: 0.5 A |
Maps & Memory |
|
|
Preloaded maps |
None |
|
Accepts data cards |
1 SD™ card |
|
Waypoints |
3,000 |
|
Routes |
100 |
|
Track log |
10,000 points; 50 saved tracks |
Features & Benefits |
|
|
Garmin Radar compatible |
No |
|
Garmin Sonar compatible |
No |
|
NMEA 2000® compatible |
Yes |
|
NMEA 0183 compatible |
Yes |
|
Garmin Marine Network™ compatible |
No |
|
Garmin SmartMode compatible (customizable monitor presets) |
No |
|
Supports AIS (tracks target ships position) |
Yes |
|
Supports DSC (displays position data from DSC-capable VHF radio) |
Yes |
|
Tide tables |
Yes |
|
Garmin Meteor Audio System compatible |
No |
|
Supports Fusion Lync compatible marine radios |
No |
|
GSD™ Black Box sonar support |
No |
|
GCV™ Black Box sonar support |
No |
|
SiriusXM™ Weather & Radio compatible |
Yes |
|
BlueChart® Mobile (planning) compatible |
No |
|
Garmin Helm compatible |
No |
|
GRID™ (Garmin Remote Input Device) compatible |
No |
|
Wireless remote compatible |
No |
|
Wireless mouse compatible |
No |
Sonar Features & Specifications |
|
|
Dual-frequency (50/200 kHz) sonar capable |
No |
|
Dual-beam (77/200 kHz) sonar capable |
No |
|
CHIRP sonar technology |
No |
|
DownVü™ |
No |
|
SideVü™ |
No |
|
Voltage range |
10-32 Vdc input |

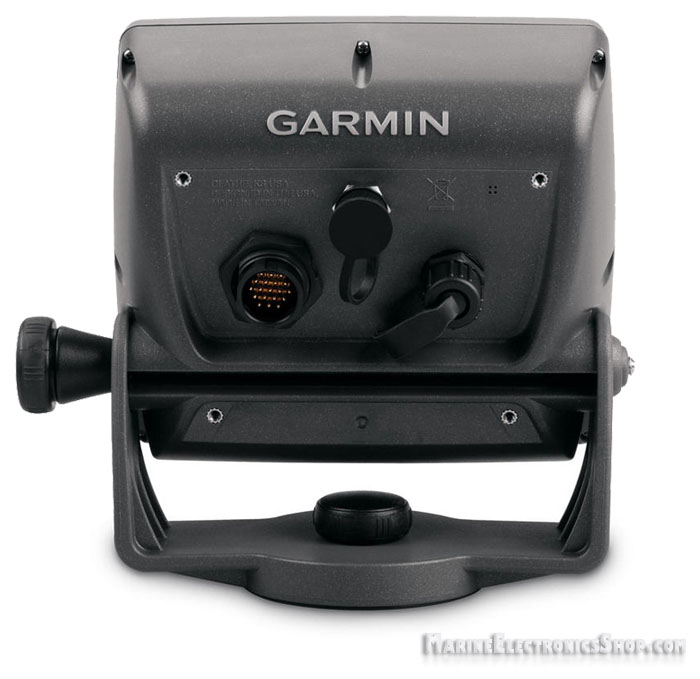

Connections |
|
|
NMEA 0183 input ports |
2 |
|
NMEA 0183 output ports |
2 |
|
Video input ports |
None |
|
Video output ports |
None |
|
Wireless connectivity |
No |
|
Garmin Marine Network™ ports |
None |
