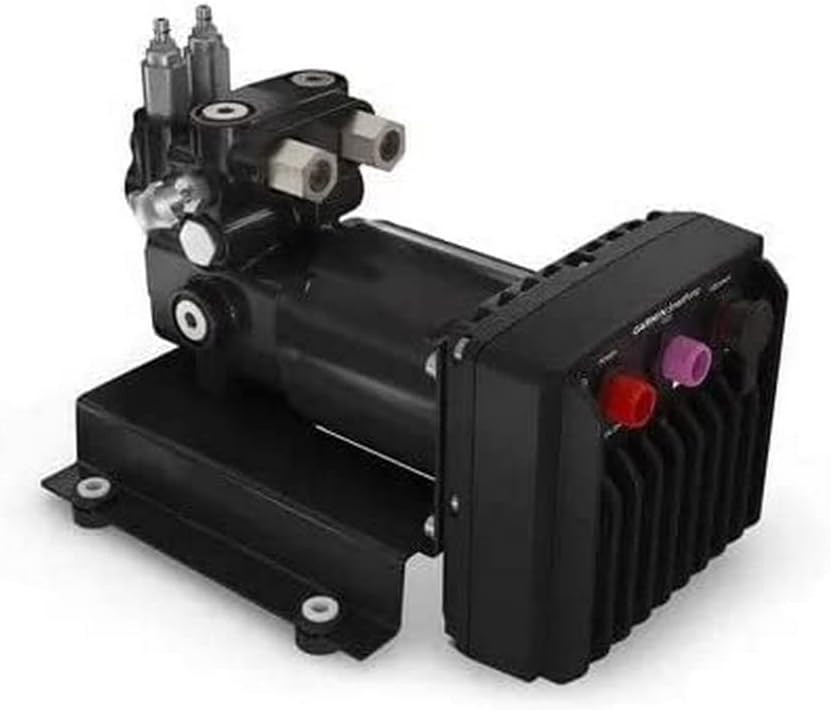

The Garmin GHP SmartPump v2 is a high-performance hydraulic autopilot pump designed to provide responsive steering control for compatible hydraulically steered boats. Developed for use with Garmin marine autopilot systems, it automatically supplies the hydraulic pressure needed to make precise steering adjustments, helping the vessel maintain its selected heading with greater consistency.

Garmin GHP SmartPump v2 - Description

The SmartPump v2 combines a compact design with improved thermal performance, reliable operation, and reduced power consumption compared with the previous generation. Its variable-speed operation allows the pump to adjust its output according to steering requirements, while color-coded connectors help simplify installation and system setup. The unit is compatible with steering cylinder sizes from 4 to 24 cubic inches, making it suitable for a broad range of marine applications.

1. Advanced Hydraulic Steering Control

The SmartPump v2 provides the hydraulic drive power required for automatic steering corrections. When integrated with a compatible Garmin autopilot system, it helps deliver smooth and controlled rudder movement for dependable course keeping.

2. Variable-Speed Pump Operation

The pump can adjust its flow according to the steering demand of the vessel. This intelligent approach helps provide responsive steering while avoiding unnecessary pump operation and supporting more efficient power usage.

3. Broad Steering Cylinder Compatibility

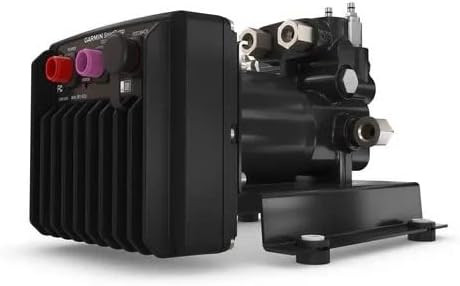

Designed to work with compatible steering cylinder sizes from 4 to 24 cubic inches, the SmartPump v2 offers flexibility for different hydraulic steering configurations. It can provide a 7-second lock-to-lock response with cylinders up to 17 cubic inches.

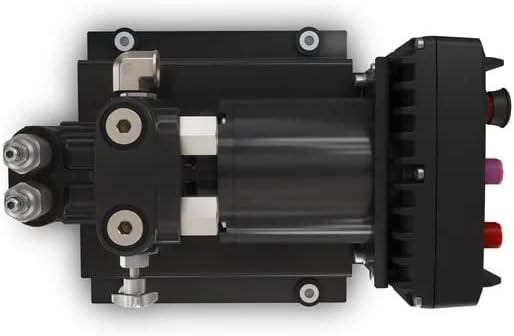

4. Improved Thermal Performance

Garmin designed the SmartPump v2 with better thermal performance than its predecessor. This helps the pump operate reliably during extended periods of autopilot use and demanding marine journeys.

5. Compact Marine Design

Despite its powerful hydraulic capabilities, the SmartPump v2 has a reduced overall size compared with the previous version. Its compact form makes it easier to accommodate within the available equipment space aboard a vessel.

6. Corrosion-Resistant Construction

The pump uses marine-focused materials designed to withstand demanding onboard conditions. Aluminum components feature a black-dyed finish, while steel parts use nickel plating to help provide additional corrosion resistance.

Garmin GHP SmartPump v2 - Key Features

1. Reliable Autopilot Hydraulic Drive

The SmartPump v2 provides consistent hydraulic steering assistance for compatible Garmin autopilot installations. It is designed to make accurate steering corrections while the vessel is operating under automatic control.

2. Efficient Variable-Speed Technology

Its configurable flow rate can operate from 0 to 2.4 liters per minute, allowing the pump to deliver hydraulic output according to the steering requirements of the boat.

3. Flexible 10–30 V DC Power Input

The SmartPump v2 supports a 10–30 V DC power input, making it suitable for a variety of compatible marine electrical systems. Its 40 A blade-type fuse provides appropriate circuit protection for the pump.

4. Low Power Consumption

The pump is designed to manage power efficiently during operation. Its stated consumption is less than 1 A in standby, 5–10 A when engaged, and up to 34 A at peak demand.

5. Easy Installation Connections

Color-coded connectors help make installation and wiring more straightforward. This design detail can simplify the process of integrating the pump into a compatible Garmin marine autopilot setup.

6. Durable Marine Materials

The SmartPump v2 uses a combination of fully gasketed aluminum-alloy electronics components, a carbon-steel bracket, an aluminum-alloy manifold, and an aluminum-alloy motor to support reliable operation in marine environments.

7. Designed for Extended Marine Use

With an operating temperature range of -15°C to 55°C, the SmartPump v2 is designed to perform across a broad range of marine operating conditions.

8. Garmin Autopilot System Integration

The pump is designed to work as part of a compatible Garmin autopilot installation, providing the hydraulic steering power needed to complement Garmin's marine navigation and automatic steering electronics.

What's in the Box

• Garmin GHP SmartPump v2

Specifications
