The Garmin GMS 10 Network Port Expander is designed to expand a compatible Garmin Marine Network, allowing multiple chartplotters, multifunction displays, and marine network devices to share information through a centralized connection point. Its 100 MB network switching capability helps create a more flexible onboard electronics setup while maintaining fast data communication between connected equipment.

Garmin GMS 10 Network Port Expander - Description

Built for marine use, the GMS 10 offers plug-and-play operation that automatically detects connected compatible devices. The sealed network connections are designed to resist moisture and the harsh conditions commonly encountered aboard boats, while the compact unit provides a practical way to expand an existing Garmin marine electronics network.

1. Expand Your Garmin Marine Network

The GMS 10 provides additional network connectivity for compatible Garmin marine electronics. It allows multiple chartplotters, displays, and sensors to communicate through the same onboard network.

2. High-Speed 100 MB Network Switching

The integrated 100 MB switch provides fast data transfer between compatible networked devices. This helps connected equipment share important information such as mapping, weather, sounder, and position data.

3. Plug-and-Play Operation

The GMS 10 is designed for straightforward installation and automatic device detection. Once compatible peripherals are connected, they can be recognized and accessed through the Garmin Marine Network.

4. Flexible System Expansion

As your onboard electronics system grows, the GMS 10 makes it easier to add additional compatible displays and devices. Standard Garmin marine network cables can be used to connect supported equipment to available network ports.

5. Marine-Ready Construction

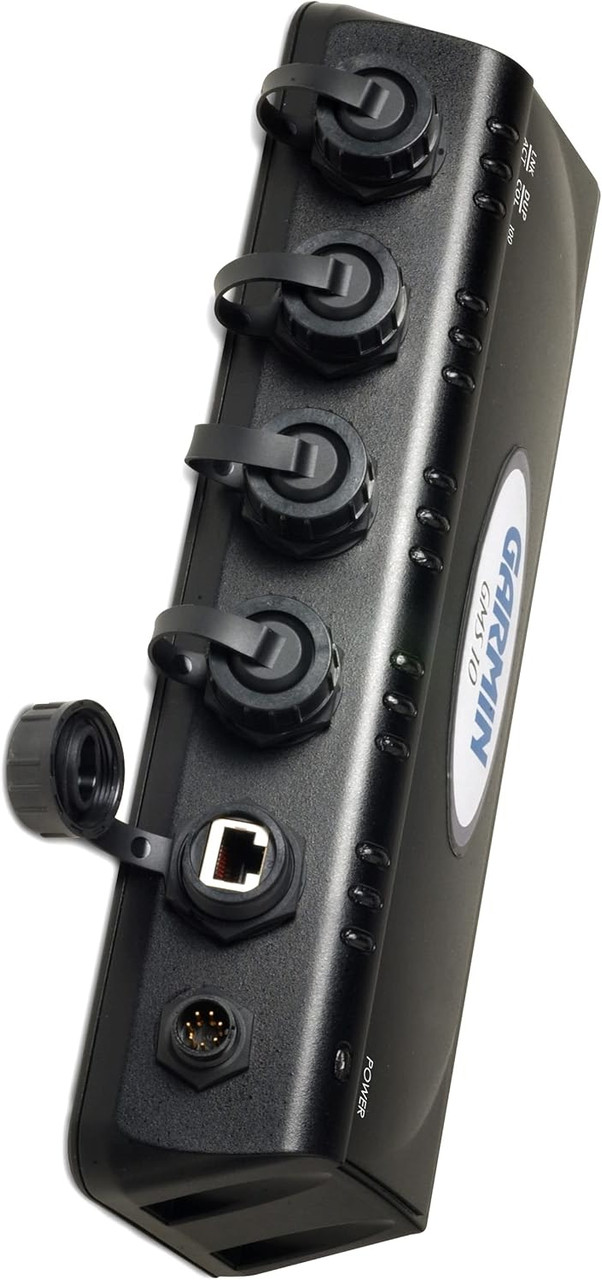

The network expander is built with a rugged, gasketed housing designed for use in marine environments. Its sealed connections help protect network ports from moisture and water exposure.

Garmin GMS 10 Network Port Expander - Key Features

1. Multiple Device Connectivity

Connect multiple compatible Garmin chartplotters, multifunction displays, and marine network devices through a single network expansion unit.

2. 100 MB Network Switch

The integrated 100 MB switch provides Ethernet-like data transfer performance for supported Garmin Marine Network devices.

3. Automatic Device Detection

Plug-and-play functionality helps connected compatible peripherals become available automatically without requiring complicated network configuration.

4. Data Sharing Across the Network

Compatible devices can share information including mapping, weather, sounder data, and position information through the connected marine network.

5. Water-Resistant Network Connections

The network ports feature sealed connections and weather caps to help protect unused ports and connected equipment from moisture.

6. LED Network Status Indicators

LED indicators provide a convenient way to monitor individual network connection status and help identify active connections.

7. Easy Network Expansion

The GMS 10 provides a practical way to expand an existing Garmin Marine Network as additional compatible equipment is installed aboard the vessel.

8. Rugged Marine Housing

The fully gasketed high-impact plastic alloy housing is designed to withstand the demands of a marine environment.

9. IPX7 Water Rating

The unit is designed with an IPX7 water rating, helping protect the network expander against temporary water immersion under specified conditions.

10. Wide Power Input Range

The GMS 10 operates from a 10–35 V DC power source, making it suitable for common marine electrical systems.

What's in the Box

• GMS 10
• Mounting hardware
• RJ-45 cable
• Power/data cable

Specifications
