Raymarine ST60 Plus Compass Display Instrument A22007-P

RRP:

~~$675.00~~

Your Price:

$519.00 (You save $156.00)

SKU:

A22007-P

Brand:

Raymarine

Condition:

New

Weight:

1.50 KGS

Shipping:

Free Shipping

Product Description

Brand New

Raymarine ST60 Plus Compass Display

ST60 Plus Display for Compass System

Raymarine ST60 Plus Compass Display, Award winning Instrument providing reliable and Accurate magnetic heading and course deviation information on both Analog and LCD display, simple operation with flexible mountings.

The ST60 Plus Compass Display could be installed as a master display (master mode) connected to a ST60 Plus compatible Transducer or as a repeater receiving data from another device connected to the SeaTalk data network like another ST60 Plus Compass instrument or Raymarine autopilots, Raymarine Chartplotters and Fishfinders (multifunction displays), Radar and other navigation equipment. To use as a repeater, simply Plug and Play-connect to the SeaTalk network and configure the Instrument as a repeater.

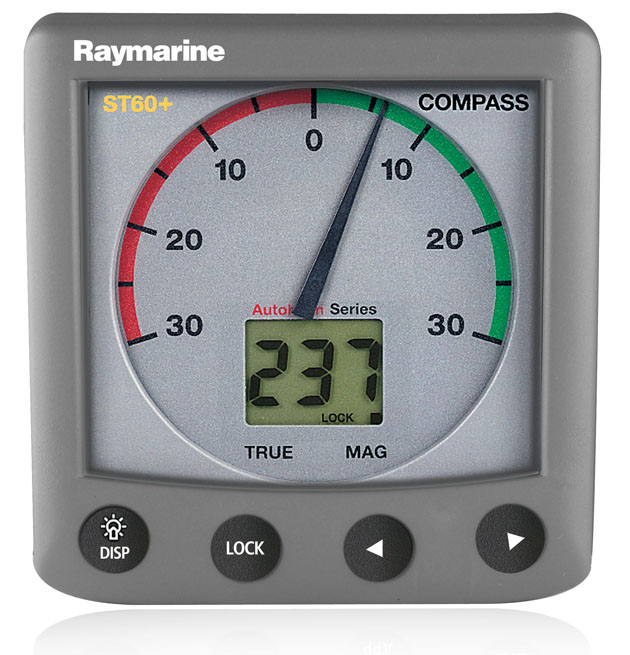

The ST60 Plus Compass Display has an analog pointer display and a big and High contrast 34mm segmented LCD display with large 13mm sized bold digits that provide a better viewing angles for both day and with 3 levels of display-backlighting for night. The display is built in a waterproof case by IPX6 & CFR46 standards to provide reliable performance even in bad weather or under the most demanding conditions.

The Raymarine ST60 Plus Compass Display delivers reliable and accurate data. Compass heading is shown in the digital display and in locked-heading mode the pointer shows the steering diviation of the locked course from -30º to 30º. The ST60 Plus Compass Instrument also displays Course Over Ground (COG) and average heading when interfaced with a SeaTalk GPS receiver.

Raymarine ST60 Plus Compass Display offers convenient and flexible mounting method either surface mounted onto your console, dashboard or bulkhead, flush-instalation or a table-top Mounting.

The ST60 Plus Compass Display comes with display unit, sun cover, SeaTalk and power cables, surface mount kit and complete instructions

Raymarine ST60 Plus Compass Display Features:

Current, locked and average heading displays
Magnetic or true hading readout
Course Over Ground (COG) display when connected to SeaTalk GPS source.
Adjustable display response.
Standard surface mount kit included, optional flush or bracket mounts available.
Intuitive 4-button control layout.
Expandable SeaTalk networking technology enables connection to Raymarine autopilots, multifunction displays, radars, chartplotters and fishfinders.
Compatible with the wireless SmartController autopilot control and instrument repeater.

Raymarine ST60 Plus Compass Display Specifications:

Power
	Nominal voltage (volts DC)	12V systems
	Absolute voltage range	10 – 16 volts
	Power consumption (typical) mA	65mA
Physical
	Overall dimensions (WxHxD) mm (standard bezel)	110x115x39
	Mounting methods	flush/surface/bracket
	Control type(s)	4 backlit buttons
	Display size and type	34mm segmented LCD & pointer
	Maximum character size	13mm
	Display lighting	3 levels plus off
Connections
	SeaTalk	2 connections
	NMEA input and output (0183)	option via E85001
	PC (RS232) and RayTech interface	option via E85001
Approvals
	EMC (Europe and FCC)	Yes
	CE marked	Yes
Environmental
	Operating temperature range	-10°C to +70°C
	Non-operating temperature range	-20°C to +70°C
	Humidity	up to 95%
	Waterproofing standard	IPX6 & CFR46
Display Pages
	Heading Data	Current, locked, average
	Heading readout	Degrees magnetic or true
	Course Over Ground	Yes	When SeaTalk GPS is available.
Additional Features
	Soft Power Down	Yes
	Adjustable Display Response Time	LCD and pointer
