The Garmin Reactor 40 Hydraulic Autopilot with GHC 50 Autopilot Instrument is a complete steering control solution designed for compatible hydraulically steered boats. It combines the Reactor 40 course computer, electronic control unit, GHC 50 touchscreen helm display, and essential networking components to deliver dependable automatic steering assistance for cruising and navigation.

Garmin Reactor 40 Hydraulic Autopilot - Description

The Reactor 40 is designed to help maintain a selected heading and respond smoothly to changing water conditions, while the GHC 50 provides a dedicated touchscreen interface for managing autopilot functions directly from the helm. When paired with a compatible Garmin chartplotter, the system can support heading hold, step turns, and additional sailing functions when suitable wind-sensing equipment is connected.

1. Complete Hydraulic Autopilot Solution

The Reactor 40 brings together the core electronics required for an integrated hydraulic autopilot installation. Its coordinated system design helps provide reliable automatic steering control without requiring a complicated collection of separate control components.

2. Dedicated GHC 50 Touchscreen Control

The included GHC 50 gives the operator a clear and convenient interface for monitoring and controlling the autopilot. Its 5-inch WVGA touchscreen provides easy access to steering functions from the helm.

3. Responsive Automatic Steering

The Reactor 40 continuously monitors vessel movement and makes appropriate steering adjustments to help maintain the selected course. This allows the skipper to enjoy a more relaxed experience during extended trips.

4. Reacts to Changing Water Conditions

The autopilot is designed to respond to changing conditions such as pitching and rolling. This helps the system maintain a steady course when the boat encounters movement caused by waves and varying water conditions.

5. Shadow Drive Compatibility

The system supports Shadow Drive technology, which can automatically disengage the autopilot when manual steering input is detected. This allows the operator to quickly regain direct control of the boat when necessary.

6. Simple Commissioning and Calibration

The Reactor 40 is designed to make initial setup and calibration straightforward. Once properly installed and commissioned, the system can be configured for the vessel's steering characteristics and operating requirements.

7. Integrated Marine Networking

NMEA 2000 connectivity allows the autopilot to communicate with compatible marine electronics. This helps integrate the Reactor 40 into a connected onboard system for expanded navigation and steering functionality.

Garmin Reactor 40 Hydraulic Autopilot - Key Features

1. Hydraulic Steering Compatibility

The Reactor 40 is designed for boats equipped with compatible hydraulic steering systems. It provides automatic steering assistance while working with the vessel's existing hydraulic steering arrangement.

2. GHC 50 5-Inch Touchscreen Display

The included GHC 50 features a 5-inch color touchscreen with an 800 × 480 WVGA resolution. Its dedicated interface makes it convenient to monitor heading information and manage autopilot controls.

3. Heading Hold Function

When connected to compatible Garmin marine electronics, the Reactor 40 can help maintain the vessel's selected heading. The system continually adjusts steering to keep the boat moving in the desired direction.

4. Step Turn Capability

The autopilot supports step-turn functions when integrated with a compatible Garmin chartplotter. This provides convenient control over programmed directional changes while navigating.

5. Powerboat and Sailing Functions

Compatible Reactor 40 installations can provide both powerboat and sailing-related features. When paired with an appropriate wind sensor, additional functions such as wind hold and tack/jibe may be available.

6. Wireless Remote Capabilities

The system can support wireless control through compatible Garmin devices when used with suitable Garmin marine electronics. This provides additional convenience for managing autopilot functions from different locations aboard the boat.

7. NMEA 2000 Networking

Built-in NMEA 2000 connectivity allows the Reactor 40 system to communicate with compatible onboard marine equipment. This supports integration with a wider marine electronics network.

8. Wi-Fi and ANT+ Connectivity

The GHC 50 provides Wi-Fi and ANT+ connectivity for compatible applications and devices. This expands the system's connectivity options beyond the dedicated helm display.

9. Ethernet Connectivity

The GHC 50 supports Ethernet connectivity, allowing it to integrate with compatible Garmin marine electronics and supported onboard networks.

10. Marine-Ready Construction

The Reactor 40 system is designed for marine environments and operates across a wide temperature range. Its components are intended to provide reliable performance aboard compatible vessels during regular on-water use.

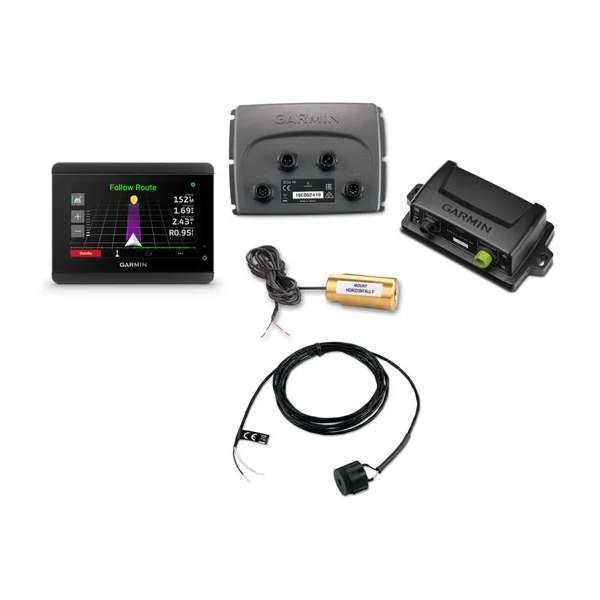

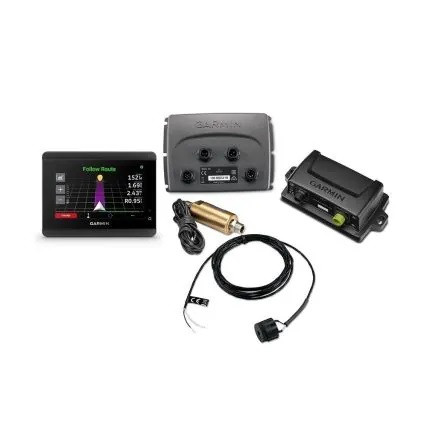

What's in the Box

• Reactor 40 CCU (Course Computer Unit)
• GHC 50 Helm Control Display
• ECU (Electronic Control Unit)
• ECU Power Cable
• Interconnect Cable
• Shadow Drive
• Buzzer
• NMEA 2000 Drop Cables (2 meters)
• NMEA 2000 Power Cable
• NMEA 2000 T-Connectors
• Male and Female Terminators
• Documentation

Specifications
