The Garmin Compact Reactor 40 Hydraulic Autopilot with GHC 50 and Shadow Drive Technology is a complete automatic steering solution designed for compatible hydraulically steered boats. Combining a compact hydraulic pump, Reactor 40 course computer, GHC 50 touchscreen control display, and Shadow Drive technology, the system provides convenient autopilot control while allowing the skipper to take manual control of the helm whenever needed.

Garmin Compact Reactor 40 Hydraulic Autopilot - Description

Designed for boat owners looking for an integrated steering solution, the Compact Reactor 40 offers heading hold and step-turn functions when connected to a compatible Garmin chartplotter. The dedicated GHC 50 control display provides an easy-to-use touchscreen interface, while the Shadow Drive system automatically disengages the autopilot when the steering wheel is turned, helping maintain direct control during maneuvering.

1. Complete Hydraulic Autopilot System

The Compact Reactor 40 combines the essential components required for automatic hydraulic steering into one integrated package. The system includes the Reactor 40 CCU, electronic control unit, 1-liter hydraulic pump, GHC 50 control display, and Shadow Drive technology.

2. Dedicated GHC 50 Touchscreen Control

The included GHC 50 provides a dedicated helm interface for managing the autopilot system. Its color touchscreen allows users to monitor and adjust steering functions from a convenient position at the helm.

3. Shadow Drive Technology

Shadow Drive technology adds an extra layer of control during manual maneuvering. When the steering wheel is turned, the system automatically disengages the autopilot, allowing the operator to take immediate control of the boat.

4. Compact Hydraulic Pump Design

The included 1-liter hydraulic pump is designed for compatible hydraulic steering systems while maintaining a compact footprint. The pump should be installed close to the steering cylinder for optimal system performance.

5. Easy Autopilot Commissioning

The Reactor 40 system is designed to simplify installation and commissioning. Flexible mounting options and straightforward calibration help get the autopilot ready for use with compatible marine steering systems.

6. Integrated Marine Networking

The system uses NMEA 2000 connectivity to communicate with compatible marine electronics. This allows the autopilot to integrate into a connected Garmin marine network when paired with supported equipment.

7. Powerboat and Sailing Functions

When connected to a compatible Garmin chartplotter, the system supports useful autopilot functions such as heading hold and step turns. With compatible additional equipment, wind-related sailing functions can also be available.

Garmin Compact Reactor 40 Hydraulic Autopilot - Key Features

1. Compact Hydraulic Autopilot Solution

The Compact Reactor 40 is designed as a space-conscious automatic steering system for compatible hydraulic boats. Its compact pump and control components make it a practical option for installations where available equipment space is limited.

2. GHC 50 Autopilot Helm Display

The included GHC 50 adds a dedicated touchscreen control interface to the autopilot installation. It allows users to monitor the system and access steering controls directly from the helm.

3. Automatic Shadow Drive Disengagement

The Shadow Drive technology detects manual steering input and automatically disengages the autopilot when the wheel is turned. This provides a smooth transition between automatic navigation and manual steering.

4. 1-Liter Hydraulic Pump

The system includes a 1-liter hydraulic pump designed to provide the steering drive required for compatible applications. Its compact dimensions make it easier to position within the vessel's hydraulic steering installation.

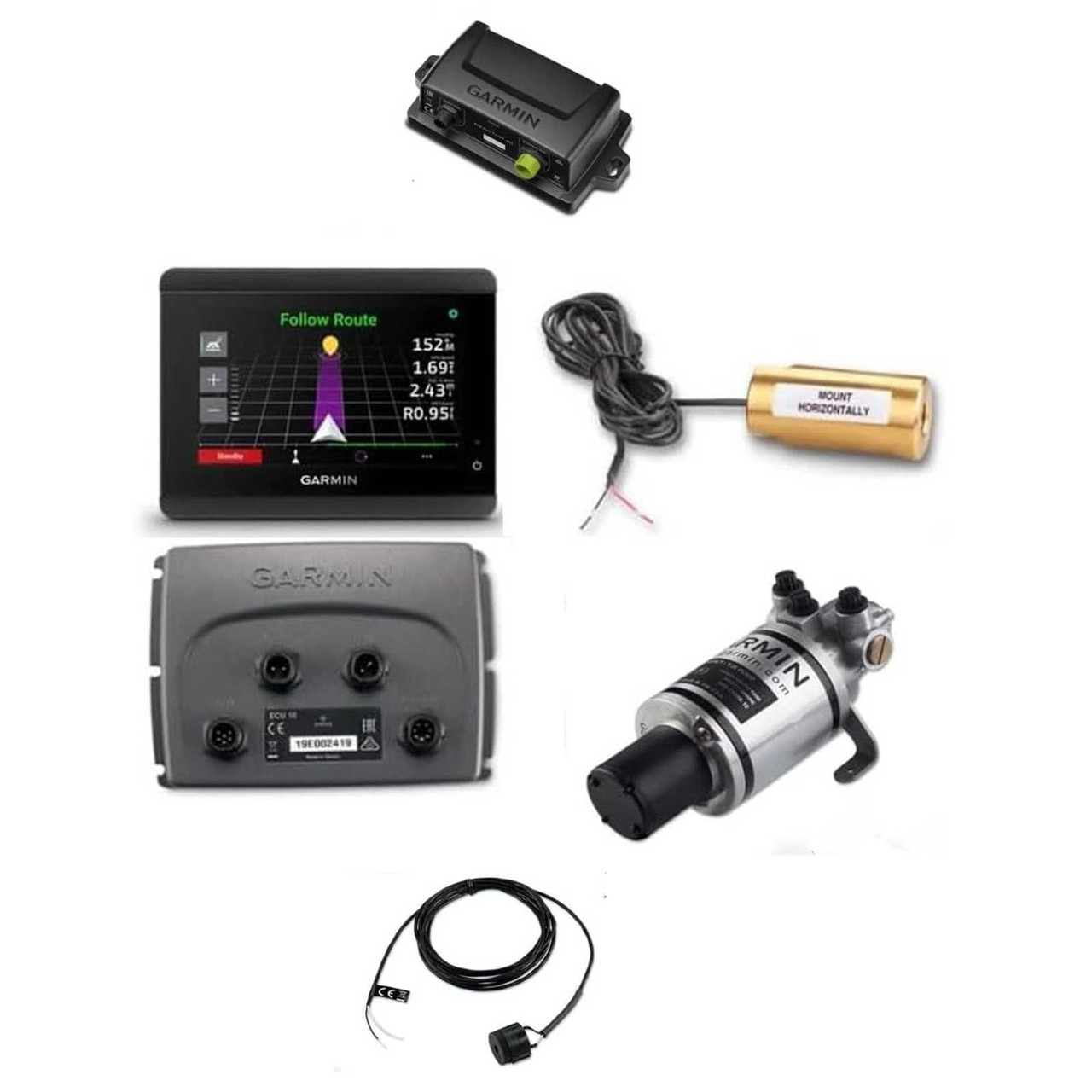

5. Reactor 40 Course Computer Unit

The included CCU acts as the central sensing component of the autopilot system. It works with the other system components to help maintain the selected heading and deliver appropriate steering corrections.

6. NMEA 2000 Connectivity

NMEA 2000 networking enables communication with compatible marine electronics. This allows the autopilot to exchange relevant information within a supported onboard network.

7. Wireless Remote Control Compatibility

When paired with compatible Garmin marine electronics, the Reactor 40 system can support control from selected compatible devices, providing additional flexibility when operating the vessel.

8. Suitable for Compatible Hydraulic Steering Systems

The Compact Reactor 40 is intended for compatible hydraulic steering applications and is particularly suited to vessels that do not require the higher performance of advanced Reactor 40 models.

9. Flexible Installation Options

The system supports flexible component placement, allowing installers to position the autopilot components according to the vessel's available space and steering configuration.

10. Marine-Ready System Design

The individual components are designed for installation aboard boats and are built to operate within specified marine temperature and environmental conditions.

What's in the Box

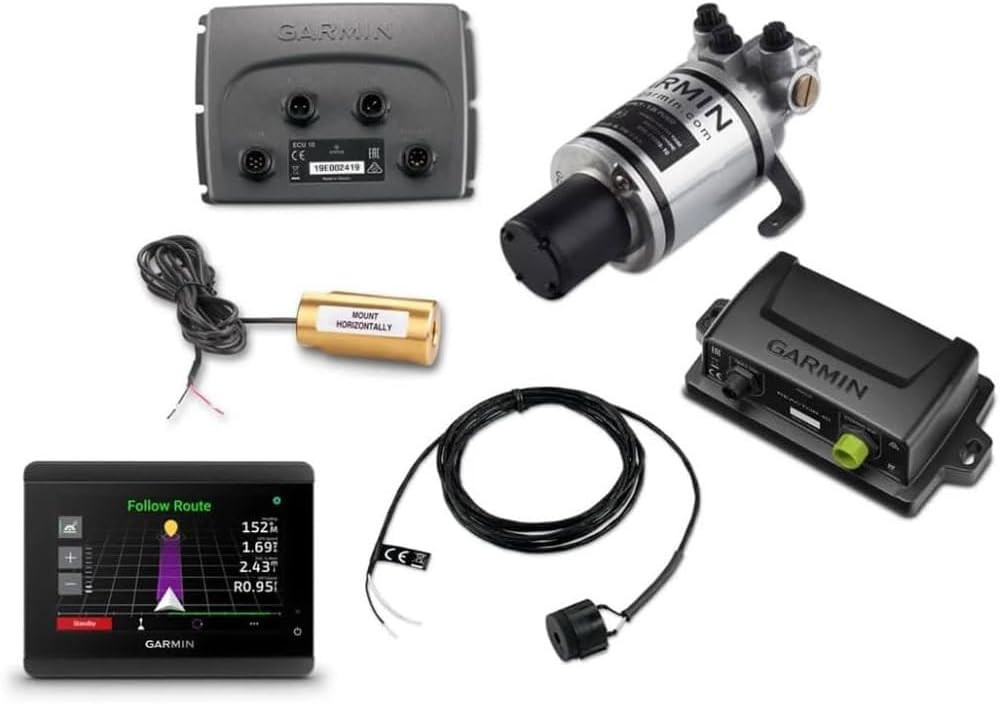

• GHC 50 Helm Control Display
• Shadow Drive
• Reactor 40 CCU (Course Computer Unit)
• 1.0 L Hydraulic Pump
• ECU (Electronic Control Unit)
• ECU Power Cable
• Interconnect Cable
• Buzzer
• NMEA 2000 Drop Cables (2 m)
• NMEA 2000 Power Cable
• NMEA 2000 T-Connectors
• Male and Female Terminators
• Documentation

Specifications
